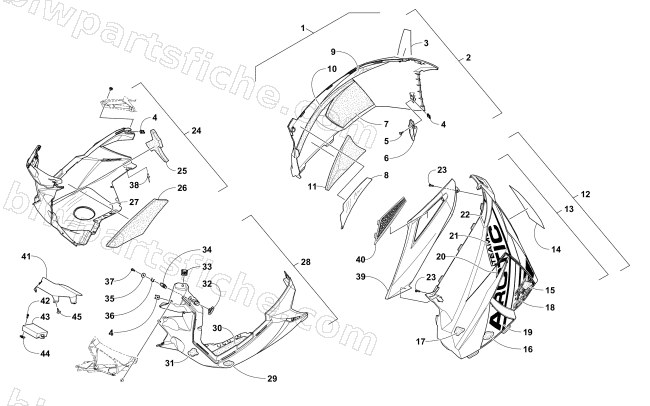

2017 Arctic Cat ZR 6000 R XC — SKID PLATE AND SIDE PANEL ASSEMBLY
2017 ZR 6000 R XC
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5718-480 | PANEL,SIDE-RH DYN GRAY-W/DECAL (R XC) | 1 | $402.95 | |
| 2 | 5718-476 | PANEL,SIDE-RH DYN GRAY-W/WARNING DECAL | 1 | $322.95 | |
| 12 | 5718-481 | PANEL,SIDE-LH DYN GRAY-W/DECAL (R XC) | 1 | $305.95 | |
| 13 | 5718-477 | PANEL,SIDE-LH DYN GRAY-W/WARNING DECAL | 1 | $322.95 | |
| 33 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 37 | 1623-933 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B | 1 | $0.26 | |
| 38 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 41 | 6606-940 | SHIELD,HEAT-ECU | 1 | $26.95 | |
| 42 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 44 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 |
