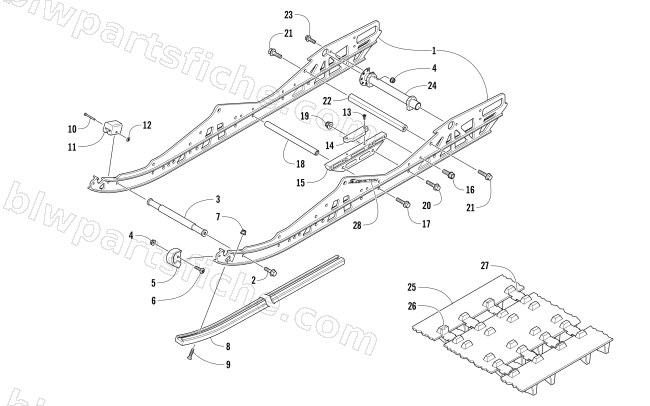

2017 Arctic Cat ZR 6000 R XC — SLIDE RAIL AND TRACK ASSEMBLY
2017 ZR 6000 R XC
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8408-826 | SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353 | 1 | $0.40 | |
| 3 | 3604-679 | AXLE,XBRC/LMTR-19.94X222.25(M8X1.25) HP | 1 | $74.95 | |
| 4 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 5 | 4604-093 | NOSEPIECE,RAIL-28.45mm WIDE | 1 | $6.75 | |
| 6 | 8476-630 | SCREW,MACH-TSTRH M6X1.0X30 Z&Y | 1 | $1.09 | |
| 7 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 8 | 4604-089 | WEARSTRIP,SLIDE RAIL-46.38BLK | 1 | $34.95 | |
| 9 | 0123-859 | SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z&Y | 1 | $1.09 | |
| 10 | 0123-767 | RIVET,SOLID-1/8 X 1.50 | 1 | $0.95 | |
| 11 | 0104-631 | PAD,SHOCK-RUBBER | 1 | $6.06 | |
| 12 | 0123-766 | NUT,PUSH-.125 STUD | 1 | $1.23 | |
| 13 | 1623-175 | SCREW,SELF TAP-TSTRH 10-24X3/4 TP F Z | 1 | $13.73 | |
| 14 | 3604-793 | PAD,SHOCK-LIMITER | 1 | $5.37 | |
| 15 | 4604-114 | BRACE,RAIL-MACH | 1 | $56.95 | |
| 16 | 1623-948 | SCREW,SELF-TAP-HFH TRILOBE-M6X20 Z&Y | 1 | $2.33 | |
| 17 | 8408-841 | SCREW,CAP-HFH M8X1.25X40 CL8.8 W/2353 | 1 | $1.78 | |
| 19 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 20 | 8408-835 | SCREW,CAP-HFH M8X1.25X35 CL8.8 Z&Y | 1 | $2.06 | |
| 21 | 8413-031 | SCREW,CAP-HFH M10X1.25X30 CL10.9 W/2353 | 1 | $2.61 | |
| 22 | 3604-803 | AXLE,XBRC-REAR ARM-222.25(M10X1.25) | 1 | $38.95 | |
| 23 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 24 | 2704-770 | BLOCK,COUPLING-PTD BLK | 1 | $82.95 | |
| 26 | 2602-383 | CLIP,GUIDE | 1 | $4.26 | |
| 27 | 2602-384 | CLIP,WEAR | 1 | $3.57 | |
| 28 | 0621-907 | DECAL,SLIDE RAIL | 1 | $5.51 |
