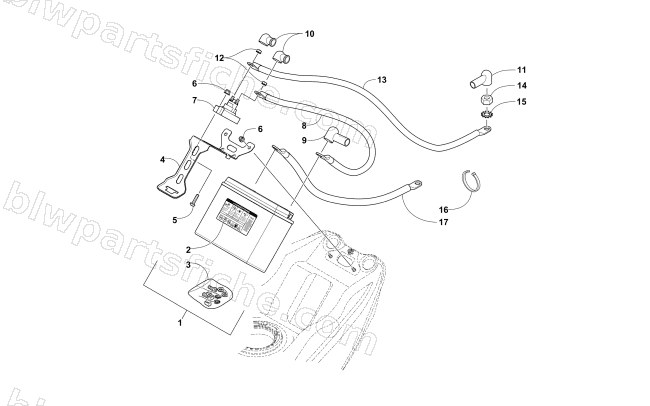

2017 Arctic Cat ZR 7000 EL TIGRE 129 — BATTERY AND TRAY ASSEMBLY
2017 ZR 7000 EL TIGRE 129
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0745-406 | BATTERY,SEALED-YTX20-ASSY | 1 | $154.95 | |
| 2 | 0645-430 | LABEL,POISON/DANGER-HORIZ FORMAT | 1 | $1.64 | |
| 3 | 0445-082 | HARDWARE,BATTERY-PACK (010 ATV) | 1 | $10.97 | |
| 4 | 0645-722 | BRKT,HOLDDOWN-BATTERY | 1 | $19.25 | |
| 5 | 8468-630 | SCREW,MACH-TSPNH M6X1.0X30 CL8.8 BLK | 1 | $0.68 | |
| 6 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 8 | 0645-649 | CABLE,BATTERY-SOLENOID | 1 | $19.25 | |
| 9 | 0645-662 | BOOT,BATTERY CABLE | 1 | $8.95 | |
| 10 | 0645-697 | BOOT,BATTERY CABLE | 1 | $19.25 | |
| 11 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 12 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 13 | 0645-690 | CABLE,SOLENOID/STARTER | 1 | $56.95 | |
| 14 | 3020-373 | NUT | 1 | $3.44 | |
| 15 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 16 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 17 | 0645-691 | CABLE,STARTER/GROUND | 1 | $54.95 |
