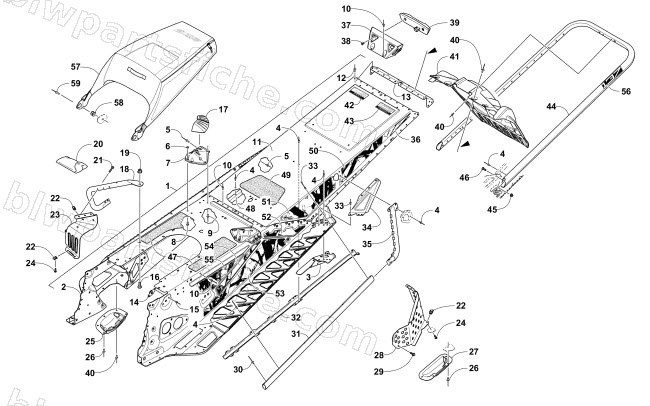

2017 Arctic Cat ZR 7000 LTD 137 — TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY
2017 ZR 7000 LTD 137
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2707-082 | CHASSIS,137/141" 4 STRK 5-PTD BLK | 1 | $2,312.95 | |
| 0 | 2707-081 | CHASSIS,137/141" 4 STRK 5-PTD WHT OMWD | 1 | $2,312.95 | |
| 1 | 2707-392 | TUNNEL, XF7-137-S/P ASSY-PTD BLK | 1 | $1,077.95 | |
| 1 | 2707-393 | TUNNEL, XF7-137-S/P ASSY-PTD WHT | 1 | $1,077.95 | |
| 2 | 2707-390 | TUNNEL,FRONT-XF7 137"-S/P ASSY-PTD BLK | 1 | $718.95 | |
| 2 | 2707-391 | TUNNEL,FRONT-XF7-S/P ASSY-PTD WHT | 1 | $718.95 | |
| 3 | 2707-244 | BRKT,REAR SUSP-OUTER-RH-PTD BLK | 1 | $26.95 | |
| 3 | 2707-245 | BRKT,REAR SUSP-OUTER-LH-PTD BLK | 1 | $26.95 | |
| 3 | 2707-246 | BRKT,REAR SUSP-OUTER-RH-PTD WHT | 1 | $26.95 | |
| 3 | 2707-247 | BRKT,REAR SUSP-OUTER-LH-PTD WHT | 1 | $26.95 | |
| 4 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 4 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 5 | 1623-206 | RIVET,3/16 HUCK-M9 | 1 | $2.06 | |
| 6 | 8422-502 | NUT, M5 X 0.8 NYLOC - YL ZN | 1 | $0.40 | |
| 7 | 1707-692 | BRKT,SPAR SUPPORT-RH-PTD BLK | 1 | $30.95 | |
| 7 | 1707-693 | BRKT,SPAR SUPPORT-LH-PTD BLK | 1 | $38.95 | |
| 7 | 1707-904 | BRKT,SPAR SUPPORT-RH-PTD WHT | 1 | $30.95 | |
| 7 | 1707-905 | BRKT,SPAR SUPPORT-LH-PTD WHT | 1 | $30.95 | |
| 8 | 8476-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&Y | 1 | $1.23 | |
| 9 | 1623-257 | RIVET,3/16 HUCK-M5 | 1 | $2.06 | |
| 10 | 8060-702 | RIVET,BLIND-DH SS62 BLK | 1 | $0.26 | |
| 10 | 8060-682 | RIVET,BLIND-DH SS62 ZINC | 1 | $0.12 | |
| 11 | 2707-376 | TUNNEL,REAR-141-PTD BLK | 1 | $198.95 | |
| 11 | 2707-377 | TUNNEL,REAR-141-PTD WHT | 1 | $198.95 | |
| 12 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 12 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 13 | 1707-725 | END CAP,TUNNEL-PTD BLK | 1 | $38.95 | |
| 13 | 1707-834 | END CAP,TUNNEL-PTD WHT | 1 | $38.95 | |
| 14 | 0608-631 | PLATE,NUT-PTO-ENG/CHASSIS | 1 | $27.95 | |
| 15 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 15 | 8060-688 | RIVET,BLIND-DH SS66 ZINC | 1 | $0.40 | |
| 16 | 8476-820 | SCREW,MACH-TSTRH M8X1.25X20 Z&Y | 1 | $0.95 | |
| 17 | 6606-664 | MOUNT,FUEL TANK-RUBBER-RH | 1 | $17.87 | |
| 17 | 6606-665 | MOUNT,FUEL TANK-RUBBER-LH | 1 | $17.87 | |
| 18 | 1707-454 | HOOK,TOE-RH PTD BLK | 1 | $65.95 | |
| 18 | 1707-455 | HOOK,TOE-LH PTD BLK | 1 | $65.95 | |
| 18 | 1707-800 | HOOK,TOE-RH-PTD WHITE | 1 | $56.95 | |
| 18 | 1707-801 | HOOK,TOE-LH-PTD WHT | 1 | $56.95 | |
| 19 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 20 | 0744-088 | KIT,TOOL BAG-4 STROKE-ASSY | 1 | $93.95 | |
| 21 | 8468-535 | SCREW,MACH-TSPNH M5X0.8X35 CL8.8 BLK | 1 | $0.95 | |
| 22 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 23 | 1707-556 | TOE STOP,RH - FORMED-PTD BLK | 1 | $29.95 | |
| 23 | 1707-557 | TOE STOP,LH - FORMED-PTD BLK | 1 | $29.95 | |
| 23 | 1707-803 | TOE STOP,LH - FORMED-PTD WHT | 1 | $29.95 | |
| 24 | 8470-516 | SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z&Y | 1 | $0.26 | |
| 25 | 1607-109 | PROTECTOR,CHAIN CASE | 1 | $5.51 | |
| 26 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 27 | 0607-351 | PROTECTOR,BRAKE DISC-BOTTOM | 1 | $12.35 | |
| 28 | 2707-044 | COVER,SHIELD-BRAKE DISC-PTD BLK | 1 | $53.95 | |
| 28 | 2707-084 | COVER,SHIELD-BRK DISC-PTD WHT | 1 | $53.95 | |
| 29 | 8408-613 | SCREW,CAP-HFH M6X1.0X12 CL8.8 Z&Y W/2353 | 1 | $1.50 | |
| 30 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 31 | 1707-697 | EDGE,RUNNING BOARD-PTD BLK | 1 | $54.95 | |
| 31 | 1707-899 | EDGE,RUNNING BOARD-PTD WHT | 1 | $54.95 | |
| 32 | 0630-316 | PROTECTOR,TAILLIGHT HARNESS-141" | 1 | $27.95 | |
| 33 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 34 | 1707-698 | GUSSET,RUNNING BOARD-RH-PTD BLK | 1 | $27.95 | |
| 34 | 1707-699 | GUSSET,RUNNING BOARD-LH-PTD BLK | 1 | $27.95 | |
| 34 | 1707-906 | GUSSET,RUNNING BOARD-RH-PTD WHT | 1 | $27.95 | |
| 34 | 1707-907 | GUSSET,RUNNING BOARD-LH-PTD WHT | 1 | $27.95 | |
| 35 | 1707-700 | GUSSET,TUNNEL-RH-PTD BLK | 1 | $30.95 | |
| 35 | 1707-701 | GUSSET,TUNNEL-LH-PTD BLK | 1 | $29.95 | |
| 35 | 1707-908 | GUSSET,TUNNEL-RH-PTD WHT | 1 | $30.95 | |
| 35 | 1707-909 | GUSSET,TUNNEL-LH-PTD WHT | 1 | $29.95 | |
| 36 | 0621-990 | DECAL,REFLECTOR-RED | 1 | $15.11 | |
| 37 | 0730-227 | HOUSING,TAILLIGHT-PTD BLK | 1 | $38.95 | |
| 37 | 0730-228 | HOUSING,TAILLIGHT-PTD WHT | 1 | $38.95 | |
| 38 | 8470-510 | SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z&Y | 1 | $0.68 | |
| 39 | 0609-898 | TAILLIGHT,RED | 1 | $66.95 | |
| 40 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 41 | 6606-394 | FLAP,SNOW-MTN-BLK | 1 | $106.95 | |
| 42 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 43 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 44 | 2707-587 | BUMPER,REAR-137/141"-PTD-ORN | 1 | $101.95 | |
| 45 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 46 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 47 | 7606-069 | SADDLEBAG,REAR-7000 AC | 1 | $238.95 | |
| 48 | 1623-940 | GROMMET,SEAT BAG | 1 | $2.06 | |
| 49 | 6606-814 | PAD,FUEL TANK MOUNT-RH | 1 | $3.99 | |
| 49 | 6606-815 | PAD,FUEL TANK MOUNT-LH | 1 | $3.99 | |
| 50 | 1607-455 | PROTECTOR,TUNNEL-LASERED 137"/141" | 1 | $60.95 | |
| 51 | 6606-816 | PAD,TUNNEL-FUEL TANK | 1 | $12.35 | |
| 53 | 8060-630 | RIVET,BLIND-DH AA68 BLK | 1 | $1.23 | |
| 54 | 6606-870 | FLARE,TUNNEL-RH BLK | 1 | $58.95 | |
| 54 | 6606-871 | FLARE,TUNNEL-LH BLK | 1 | $58.95 | |
| 55 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 |
