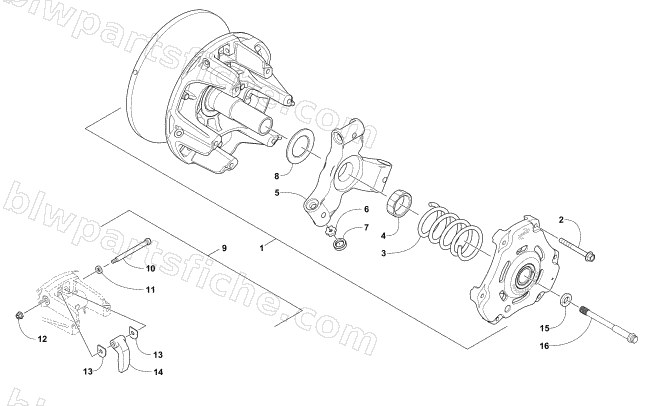

DRIVE CLUTCH
2017 ZR 7000 LXR 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 0646-468 | SPRING,DRIVE-35/215 LB | 1 | $106.95 | |
| 10 | 0823-396 | SCREW,SHOULDER-HEX SKT .25X2.5 | 1 | $12.35 | |
| 11 | 2623-091 | WASHER, FLAT .500 X .250 X .130 NYLON | 1 | $5.65 | |
| 12 | 0823-399 | NUT,LOCK HEX #10-24 FLEXLOCK | 1 | $9.59 | |
| 13 | 0646-880 | WASHER,FLYWEIGHT THRUST .252X.830X.050 | 1 | $20.63 | |
| 15 | 0623-210 | WASHER, LOCK-1/2" HI-COLLAR | 1 | $0.68 | |
| 16 | 0623-804 | BOLT, CLUTCH-1/2-20X5-1/5-12 PT | 1 | $15.11 |
