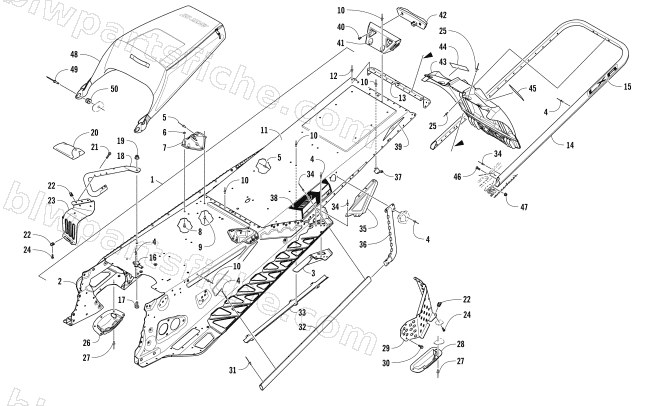

2017 Arctic Cat ZR 8000 LXR ES 137 — TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY
2017 ZR 8000 LXR ES 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1707-985 | CHASSIS,137/141" 2 STRK-ASSY | 1 | $2,312.95 | |
| 1 | 2707-236 | TUNNEL, XF-137-S/P ASSY | 1 | $939.95 | |
| 2 | 2707-235 | TUNNEL,FRONT-XF137-S/P ASSY | 1 | $718.95 | |
| 3 | 1607-332 | BRKT,REAR SUSP-OUTER RH | 1 | $19.25 | |
| 3 | 1607-333 | BRKT,REAR SUSP-OUTER LH | 1 | $19.25 | |
| 4 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 5 | 1623-206 | RIVET,3/16 HUCK-M9 | 1 | $2.06 | |
| 6 | 8422-502 | NUT, M5 X 0.8 NYLOC - YL ZN | 1 | $0.40 | |
| 7 | 1707-644 | BRKT,SPAR SUPPORT-RH-MACH | 1 | $27.95 | |
| 7 | 1707-645 | BRKT,SPAR SUPPORT-LH-MACH | 1 | $27.95 | |
| 8 | 8476-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&Y | 1 | $1.23 | |
| 9 | 1623-257 | RIVET,3/16 HUCK-M5 | 1 | $2.06 | |
| 10 | 8060-682 | RIVET,BLIND-DH SS62 ZINC | 1 | $0.12 | |
| 11 | 1607-251 | TUNNEL,REAR-141" | 1 | $384.95 | |
| 12 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 13 | 1607-104 | CLOSE OFF,TUNNEL-MC | 1 | $38.95 | |
| 14 | 2707-585 | BUMPER,REAR-137/141"-PTD-WHT | 1 | $101.95 | |
| 16 | 0645-709 | CLIP,BATTERY CABLE | 1 | $5.09 | |
| 17 | 8476-820 | SCREW,MACH-TSTRH M8X1.25X20 Z&Y | 1 | $0.95 | |
| 18 | 1707-454 | HOOK,TOE-RH PTD BLK | 1 | $65.95 | |
| 18 | 1707-455 | HOOK,TOE-LH PTD BLK | 1 | $65.95 | |
| 19 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 20 | 0744-087 | KIT,TOOL BAG-2 STROKE-ASSY | 1 | $90.95 | |
| 21 | 8468-535 | SCREW,MACH-TSPNH M5X0.8X35 CL8.8 BLK | 1 | $0.95 | |
| 22 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 23 | 0607-996 | TOE STOP,RH - FORMED | 1 | $24.77 | |
| 23 | 0607-997 | TOE STOP,LH - FORMED | 1 | $24.77 | |
| 24 | 8470-516 | SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z&Y | 1 | $0.26 | |
| 25 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 26 | 1607-109 | PROTECTOR,CHAIN CASE | 1 | $5.51 | |
| 27 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 28 | 0607-351 | PROTECTOR,BRAKE DISC-BOTTOM | 1 | $12.35 | |
| 29 | 1607-371 | COVER,SHIELD-BRAKE DISC | 1 | $102.95 | |
| 30 | 8408-613 | SCREW,CAP-HFH M6X1.0X12 CL8.8 Z&Y W/2353 | 1 | $1.50 | |
| 31 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 32 | 1607-092 | EDGE,RUNNING BOARD-MACH | 1 | $57.95 | |
| 33 | 0630-309 | PROTECTOR,TAILLIGHT HARNESS-141" | 1 | $16.49 | |
| 34 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 35 | 1607-162 | GUSSET,RUNNING BOARD-RH | 1 | $17.87 | |
| 35 | 1607-163 | GUSSET,RUNNING BOARD-LH | 1 | $17.87 | |
| 36 | 1607-040 | GUSSET,TUNNEL-RH | 1 | $20.63 | |
| 36 | 1607-041 | GUSSET,TUNNEL-LH | 1 | $20.63 | |
| 37 | 0630-292 | PROTECTOR,TAILLIGHT HARNESS-26.5mm | 1 | $15.11 | |
| 39 | 0621-990 | DECAL,REFLECTOR-RED | 1 | $15.11 | |
| 40 | 8470-510 | SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z&Y | 1 | $0.68 | |
| 41 | 0630-328 | HOUSING,TAILLIGHT | 1 | $29.95 | |
| 42 | 0609-898 | TAILLIGHT,RED | 1 | $66.95 | |
| 43 | 6606-394 | FLAP,SNOW-MTN-BLK | 1 | $106.95 | |
| 44 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 45 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 46 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 47 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 48 | 6606-600 | SADDLEBAG,REAR | 1 | $234.95 | |
| 49 | 8060-630 | RIVET,BLIND-DH AA68 BLK | 1 | $1.23 | |
| 50 | 1623-940 | GROMMET,SEAT BAG | 1 | $2.06 |
