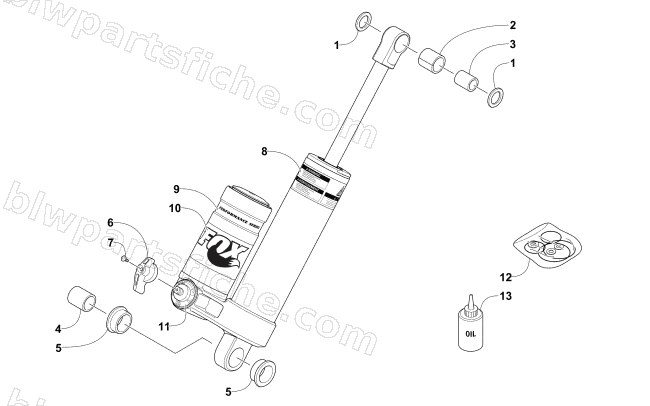

2017 Arctic Cat ZR 8000 RR ES 137 — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2017 ZR 8000 RR ES 137
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3603-399 | BUSHING,EYELET-.403 ID X .621 OD X .740 | 1 | $35.95 | |
| 4 | 2604-223 | SLEEVE, .571 X .815 X .950TLG | 1 | $33.95 | |
| 5 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 7 | 3603-377 | SCREW,#4-40 X 1/4 SS | 1 | $12.35 | |
| 8 | 3603-418 | DECAL BAND [4.4 X 1.5] WARNING SYMBOLS | 1 | $12.35 | |
| 9 | 3603-365 | DECAL,BAND-PERFORMANCE SERIES | 1 | $17.87 | |
| 10 | 3603-437 | DECAL, RESERVOIR - FS KASHIMA | 1 | $19.25 | |
| 13 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
