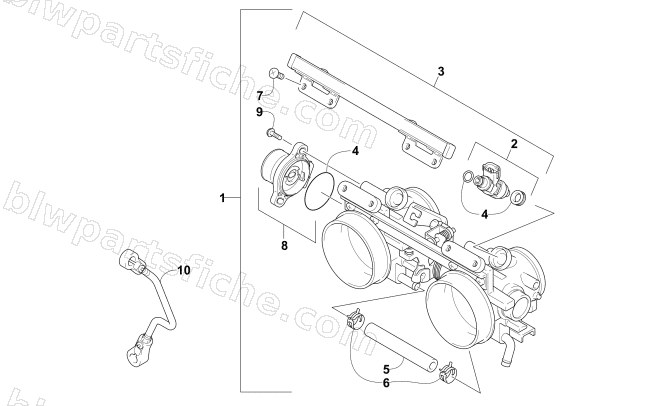

2017 Arctic Cat ZR 8000 SNO PRO ES 129 — THROTTLE BODY ASSEMBLY
2017 ZR 8000 SNO PRO ES 129
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-890 | THROTTLE BODY ASSY | 1 | $2,282.95 | |
| 2 | 3007-891 | INJECTOR,FUEL-ASSY(CIRCLE) | 1 | $663.95 | |
| 2 | 3007-892 | INJECTOR,FUEL-ASSY(SQUARE) | 1 | $663.95 | |
| 2 | 3007-893 | INJECTOR,FUEL-ASSY(TRIANGLE) | 1 | $644.95 | |
| 3 | 3007-442 | PIPE,FUEL DELIVERY | 1 | $711.95 | |
| 4 | 3005-692 | O-RING SET | 1 | $118.95 | |
| 5 | 3006-723 | HOSE | 1 | $56.95 | |
| 6 | 3004-193 | CLAMP, HOSE-EFI THROTTLE BODY,M12 | 1 | $4.95 | |
| 7 | 3007-443 | SCREW | 1 | $2.06 | |
| 8 | 3006-939 | THROTTLE POSITION SENSOR | 1 | $561.95 | |
| 9 | 3007-026 | SCREW | 1 | $2.47 | |
| 10 | 3007-538 | ROD,OIL PUMP CONTROL | 1 | $89.95 |
