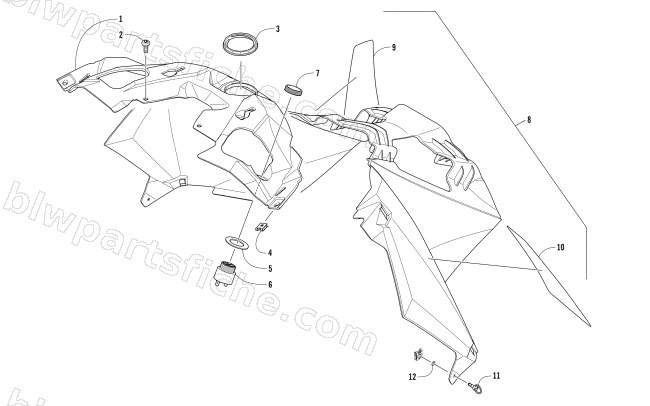

CONSOLE ASSEMBLY
2017 ZR 8000 SNO PRO ES 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 6606-305 | CONSOLE,2 STROKE-BLK | 1 | $66.95 | |
| 2 | 0423-396 | SCREW,SELF TAP-TSPH M6-1.0X15 | 1 | $1.09 | |
| 3 | 6606-390 | NUT,RETAINING-CONSOLE | 1 | $2.06 | |
| 4 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 5 | 0630-264 | WASHER,SPACER-IGNITION SWITCH | 1 | $0.95 | |
| 6 | 0630-243 | ALARM,REVERSE-DC ONLY | 1 | $106.95 | |
| 7 | 0630-017 | RING,RETAINING-REV ALARM | 1 | $12.35 | |
| 8 | 3718-998 | CONSOLE,LWR-BLK- W/DECAL | 1 | $185.95 | |
| 9 | 9611-499 | DECAL,WARNING-ENGLISH | 1 | $16.49 | |
| 10 | 9611-498 | DECAL,WARNING-FRENCH | 1 | $13.73 | |
| 11 | 2623-003 | STUD,1/4 TURN-16MM | 1 | $19.95 | |
| 12 | 2623-004 | RETAINER,RING-SPLIT | 1 | $4.95 |
