Home Snowmobile 2017 ZR 9000 LTD 137 FRONT SHOCK ABSORBER ASSEMBLY

FRONT SHOCK ABSORBER ASSEMBLY

2017 ZR 9000 LTD 137

Scroll / pinch to zoom · drag to pan · double-click resets

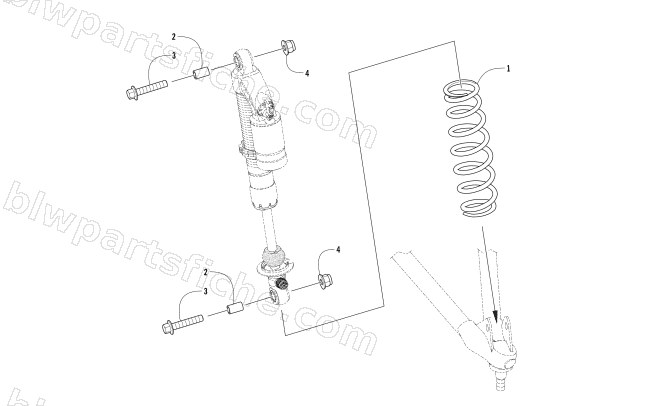

FRONT SHOCK ABSORBER ASSEMBLY diagram
# Part No. Description Qty Price
1 3703-484 SPRING,COMP-95 LB x 10.50"-PTD BLK 1 $39.95
2 3604-109 SLEEVE,SHOCK EYELET-10mm ID 1 $4.40
3 8408-050 SCREW,CAP-HFH M10X1.25X50 CL8.8 Z&Y 1 $2.75
4 8427-002 NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y 1 $0.95
