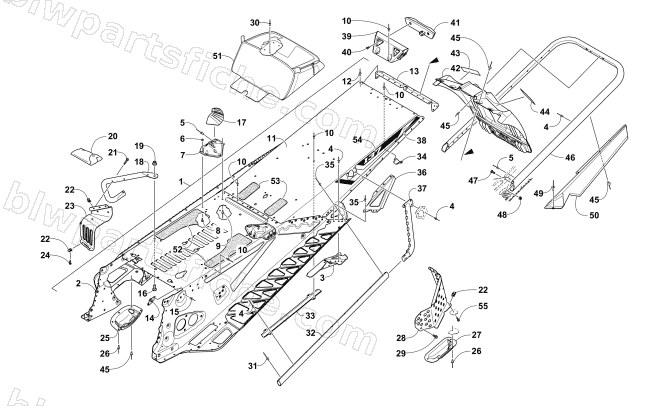

2017 Arctic Cat ZR 9000 LTD 137 — TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY
2017 ZR 9000 LTD 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 2707-244 | BRKT,REAR SUSP-OUTER-RH-PTD BLK | 1 | $26.95 | |
| 3 | 2707-245 | BRKT,REAR SUSP-OUTER-LH-PTD BLK | 1 | $26.95 | |
| 3 | 2707-246 | BRKT,REAR SUSP-OUTER-RH-PTD WHT | 1 | $26.95 | |
| 3 | 2707-247 | BRKT,REAR SUSP-OUTER-LH-PTD WHT | 1 | $26.95 | |
| 4 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 4 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 5 | 1623-206 | RIVET,3/16 HUCK-M9 | 1 | $2.06 | |
| 6 | 8422-502 | NUT, M5 X 0.8 NYLOC - YL ZN | 1 | $0.40 | |
| 7 | 1707-692 | BRKT,SPAR SUPPORT-RH-PTD BLK | 1 | $30.95 | |
| 7 | 1707-693 | BRKT,SPAR SUPPORT-LH-PTD BLK | 1 | $38.95 | |
| 7 | 1707-904 | BRKT,SPAR SUPPORT-RH-PTD WHT | 1 | $30.95 | |
| 7 | 1707-905 | BRKT,SPAR SUPPORT-LH-PTD WHT | 1 | $30.95 | |
| 8 | 8476-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&Y | 1 | $1.23 | |
| 9 | 1623-257 | RIVET,3/16 HUCK-M5 | 1 | $2.06 | |
| 10 | 8060-702 | RIVET,BLIND-DH SS62 BLK | 1 | $0.26 | |
| 10 | 8060-682 | RIVET,BLIND-DH SS62 ZINC | 1 | $0.12 | |
| 12 | 8060-482 | RIVET,BLIND-DH SS52 ZINC | 1 | $0.14 | |
| 13 | 1707-725 | END CAP,TUNNEL-PTD BLK | 1 | $38.95 | |
| 13 | 1707-834 | END CAP,TUNNEL-PTD WHT | 1 | $38.95 | |
| 14 | 0608-631 | PLATE,NUT-PTO-ENG/CHASSIS | 1 | $27.95 | |
| 15 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 16 | 8476-820 | SCREW,MACH-TSTRH M8X1.25X20 Z&Y | 1 | $0.95 | |
| 17 | 6606-664 | MOUNT,FUEL TANK-RUBBER-RH | 1 | $17.87 | |
| 17 | 6606-665 | MOUNT,FUEL TANK-RUBBER-LH | 1 | $17.87 | |
| 19 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 20 | 0744-088 | KIT,TOOL BAG-4 STROKE-ASSY | 1 | $93.95 | |
| 21 | 8468-535 | SCREW,MACH-TSPNH M5X0.8X35 CL8.8 BLK | 1 | $0.95 | |
| 22 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 23 | 1707-556 | TOE STOP,RH - FORMED-PTD BLK | 1 | $29.95 | |
| 23 | 1707-557 | TOE STOP,LH - FORMED-PTD BLK | 1 | $29.95 | |
| 23 | 1707-802 | TOE STOP,RH - FORMED-PTD WHT | 1 | $29.95 | |
| 23 | 1707-803 | TOE STOP,LH - FORMED-PTD WHT | 1 | $29.95 | |
| 24 | 8470-516 | SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z&Y | 1 | $0.26 | |
| 25 | 1607-109 | PROTECTOR,CHAIN CASE | 1 | $5.51 | |
| 26 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 27 | 0607-351 | PROTECTOR,BRAKE DISC-BOTTOM | 1 | $12.35 | |
| 28 | 2707-044 | COVER,SHIELD-BRAKE DISC-PTD BLK | 1 | $53.95 | |
| 28 | 2707-084 | COVER,SHIELD-BRK DISC-PTD WHT | 1 | $53.95 | |
| 29 | 8408-613 | SCREW,CAP-HFH M6X1.0X12 CL8.8 Z&Y W/2353 | 1 | $1.50 | |
| 30 | 8061-628 | RIVET,BLIND-LF AA66 BLACK | 1 | $0.95 | |
| 31 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 32 | 1707-697 | EDGE,RUNNING BOARD-PTD BLK | 1 | $54.95 | |
| 32 | 1707-899 | EDGE,RUNNING BOARD-PTD WHT | 1 | $54.95 | |
| 34 | 0630-292 | PROTECTOR,TAILLIGHT HARNESS-26.5mm | 1 | $15.11 | |
| 35 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 36 | 1707-698 | GUSSET,RUNNING BOARD-RH-PTD BLK | 1 | $27.95 | |
| 36 | 1707-699 | GUSSET,RUNNING BOARD-LH-PTD BLK | 1 | $27.95 | |
| 36 | 1707-906 | GUSSET,RUNNING BOARD-RH-PTD WHT | 1 | $27.95 | |
| 36 | 1707-907 | GUSSET,RUNNING BOARD-LH-PTD WHT | 1 | $27.95 | |
| 37 | 1707-700 | GUSSET,TUNNEL-RH-PTD BLK | 1 | $30.95 | |
| 37 | 1707-701 | GUSSET,TUNNEL-LH-PTD BLK | 1 | $29.95 | |
| 37 | 1707-908 | GUSSET,TUNNEL-RH-PTD WHT | 1 | $30.95 | |
| 37 | 1707-909 | GUSSET,TUNNEL-LH-PTD WHT | 1 | $29.95 | |
| 38 | 0621-990 | DECAL,REFLECTOR-RED | 1 | $15.11 | |
| 39 | 0730-227 | HOUSING,TAILLIGHT-PTD BLK | 1 | $38.95 | |
| 39 | 0730-228 | HOUSING,TAILLIGHT-PTD WHT | 1 | $38.95 | |
| 40 | 8470-510 | SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z&Y | 1 | $0.68 | |
| 41 | 0609-898 | TAILLIGHT,RED | 1 | $66.95 | |
| 42 | 6606-394 | FLAP,SNOW-MTN-BLK | 1 | $106.95 | |
| 43 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 44 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 45 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 47 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 48 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 49 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 50 | 6606-870 | FLARE,TUNNEL-RH BLK | 1 | $58.95 | |
| 50 | 6606-871 | FLARE,TUNNEL-LH BLK | 1 | $58.95 | |
| 52 | 6606-814 | PAD,FUEL TANK MOUNT-RH | 1 | $3.99 | |
| 52 | 6606-815 | PAD,FUEL TANK MOUNT-LH | 1 | $3.99 | |
| 53 | 6606-877 | PAD,RUBBER-45 X 110 X 1.6 | 1 | $2.88 | |
| 55 | 8470-520 | SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z&Y | 1 | $0.40 |
