2017 Arctic Cat ZR 9000 LXR 137 — CONSOLE ASSEMBLY

2017 ZR 9000 LXR 137

Scroll / pinch to zoom · drag to pan · double-click resets

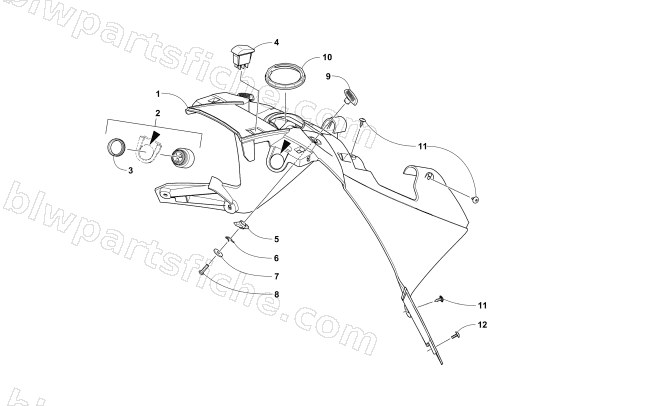

CONSOLE ASSEMBLY diagram
# Part No. Description Qty Price
2 0630-243 ALARM,REVERSE-DC ONLY 1 $106.95
3 0630-017 RING,RETAINING-REV ALARM 1 $12.35
4 0609-836 SWITCH, HEATED SEAT 1 $73.95
8 1623-933 SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B 1 $0.26
10 6606-390 NUT,RETAINING-CONSOLE 1 $2.06
