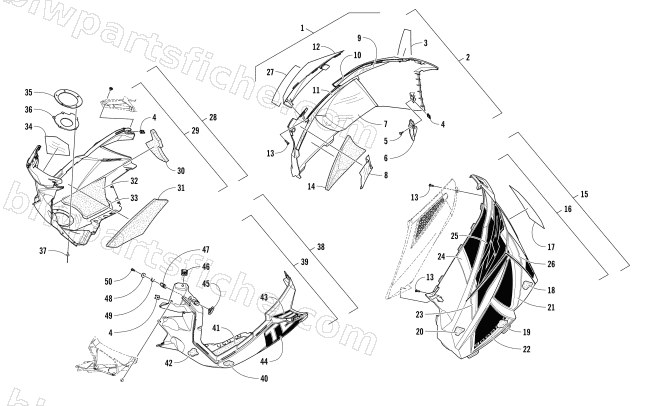

2017 Arctic Cat ZR 9000 RR 137 — SKID PLATE AND SIDE PANEL ASSEMBLY
2017 ZR 9000 RR 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5718-220 | PANEL,SIDE-RH TA GRN-W/DECALS (9000 RR) | 1 | $396.95 | |
| 2 | 5718-224 | PANEL,SIDE-RH TA GRN-W/WARNING DECAL | 1 | $296.95 | |
| 15 | 5718-221 | PANEL,SIDE-LH TA GRN-W/DECALS (9000 RR) | 1 | $296.95 | |
| 16 | 5718-225 | PANEL,SIDE-LH TA GRN-W/WARNING DECAL | 1 | $180.95 | |
| 37 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 46 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 50 | 1623-933 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B | 1 | $0.26 |
