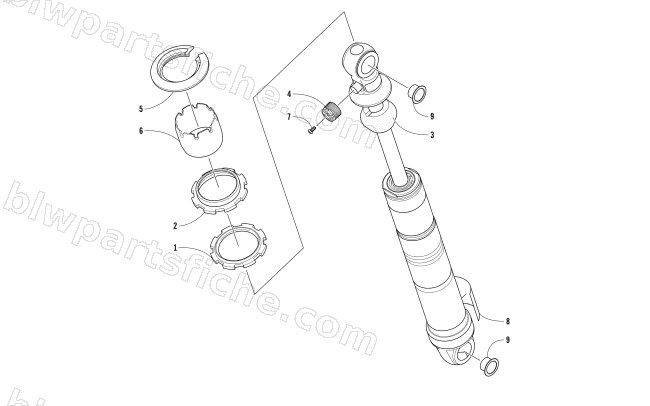

2017 Arctic Cat ZR 9000 SNO PRO 137 — FRONT SUSPENSION SHOCK ABSORBER
2017 ZR 9000 SNO PRO 137
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3603-026 | RING,PRELOAD BACK UP-2.4ODX.240TLG | 1 | $16.49 | |
| 2 | 3603-027 | RING,PRELOAD-2.40 OD X .450 TLG | 1 | $17.87 | |
| 3 | 3603-024 | BUMPER,.498 SHAFT X 1.050 TLG | 1 | $16.49 | |
| 4 | 3603-386 | KNOB,DAMPING ADJUST-REBOUND | 1 | $7.30 | |
| 6 | 4604-016 | SPRING, GUIDE-1.82 OD X 1.50 TLG | 1 | $38.95 | |
| 7 | 3603-377 | SCREW,#4-40 X 1/4 SS | 1 | $12.35 | |
| 8 | 3603-570 | DECAL,BODY-W/WARNING-PERF SERIES 2" X 5" | 1 | $24.77 | |
| 9 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 10 | 2604-223 | SLEEVE, .571 X .815 X .950TLG | 1 | $33.95 |
