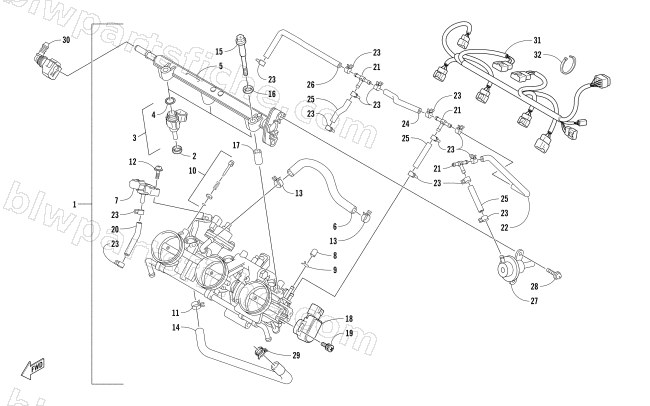

THROTTLE BODY ASSEMBLY
2017 ZR 9000 SNO PRO 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 6 | 3020-339 | HOSE,VENT | 1 | $27.95 | |
| 10 | 3020-335 | SCREW,ADJUSTER-SET | 1 | $19.25 | |
| 15 | 3020-329 | SCREW,SHOULDER | 1 | $17.87 | |
| 16 | 3020-330 | WASHER | 1 | $4.26 | |
| 17 | 3020-331 | SPACER | 1 | $8.21 | |
| 18 | 3020-342 | THROTTLE SENSOR ASSY | 1 | $156.95 | |
| 19 | 3020-343 | SCREW,MACHINE-PPH | 1 | $6.47 | |
| 29 | 1623-285 | CLAMP,HOSE-SPRING (12W X 22) | 1 | $2.88 | |
| 32 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 32 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
