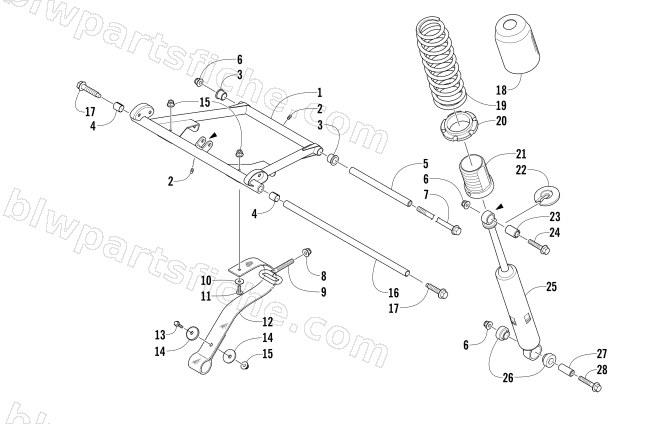

REAR SUSPENSION FRONT ARM ASSEMBLY
2018 BEARCAT 2000 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2704-019 | ARM,FRONT-FAB | 1 | $296.95 | |
| 2 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 3 | 0104-386 | BUSHING,REAR ARM | 1 | $4.26 | |
| 4 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 5 | 3604-434 | AXLE, STEEL-M10X341.55 | 1 | $27.95 | |
| 7 | 2623-078 | SCREW,CAP-HFH-M10X1.25X373 CL10.9-RIE SI | 1 | $24.77 | |
| 8 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 9 | 0704-256 | ADJUSTER,FRT.ARM-PTD BLK | 1 | $16.49 | |
| 10 | 8450-109 | WASHER,FLAT M6-6.87X25.4X2.32 Z&Y | 1 | $0.68 | |
| 11 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 12 | 3604-615 | STRAP, LIMITER-FRONT-484X38MM | 1 | $30.95 | |
| 13 | 8408-635 | SCREW,CAP-HFH M6X1.0X35 CL8.8 Z&Y | 1 | $0.68 | |
| 14 | 0623-875 | WASHER, BACKING-7MM ID X 11/8OD | 1 | $1.78 | |
| 15 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 16 | 3604-604 | AXLE,FRONT ARM-UPPER | 1 | $57.95 | |
| 17 | 2623-002 | SCREW,CAP-HFH-M10X1.25X30-MPT-W/2353 | 1 | $3.71 | |
| 18 | 0604-590 | COVER,SUSPENSION SPRING (LONG) | 1 | $27.95 | |
| 19 | 1703-072 | SPRING, COMP-140-PAINTED BLACK | 1 | $93.95 | |
| 20 | 0603-259 | NUT,RETAINER-SPRING | 1 | $5.65 | |
| 21 | 0603-147 | SLEEVE,THREADED-SHOCK | 1 | $60.95 | |
| 22 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 23 | 3604-273 | AXLE,SHOCK-FRT ARM-M10 | 1 | $2.88 | |
| 24 | 8408-050 | SCREW,CAP-HFH M10X1.25X50 CL8.8 Z&Y | 1 | $2.75 | |
| 25 | 1604-369 | SHOCK,FRONT ARM | 1 | $157.95 | |
| 26 | 1604-384 | BUSHING, EYELET - ARVIN SHOCK | 1 | $3.99 | |
| 27 | 2603-544 | AXLE, A-ARM-LWR-FRONT | 1 | $2.88 | |
| 28 | 8408-065 | SCREW,CAP-HFH M10X1.25X65 CL8.8 Z&Y | 1 | $3.16 |
