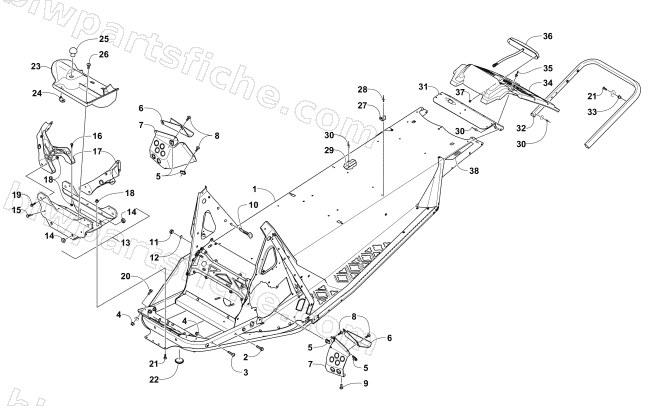

2018 Arctic Cat LYNX 2000 — CHASSIS, REAR BUMPER, AND SNOWFLAP ASSEMBLY
2018 LYNX 2000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1707-279 | CHASSIS,F570-TPT SPR ASSY | 1 | $2,646.95 | |
| 2 | 1623-428 | SCREW,CAP-HFH M8 X 1.25 X 40 TRILOBE Z&Y | 1 | $4.95 | |
| 3 | 8476-835 | SCREW,MACH-TSTRH M8X1.25X35 Z&Y | 1 | $3.59 | |
| 4 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 5 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 6 | 3606-920 | BRKT, TOE HOOK-RH | 1 | $19.25 | |
| 6 | 3606-921 | BRKT, TOE HOOK-LH | 1 | $19.25 | |
| 7 | 3606-710 | SHIELD, TOE-RH | 1 | $69.95 | |
| 7 | 3606-711 | SHIELD, TOE-LH | 1 | $69.95 | |
| 8 | 8471-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z&B | 1 | $0.68 | |
| 10 | 4606-454 | STRAP,HOLDDOWN-UPR PANEL-RH | 1 | $4.68 | |
| 10 | 4606-455 | STRAP,HOLDDOWN-UPR PANEL-LH | 1 | $4.68 | |
| 11 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 12 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 13 | 1707-340 | BRKT,FRT SUSP MTG-W/BUSHINGS | 1 | $359.95 | |
| 14 | 0605-763 | BUSHING,LWR A-ARM | 1 | $3.44 | |
| 15 | 1623-443 | BOLT, RIBBED NECK M6 X 35 Z&Y | 1 | $1.78 | |
| 16 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 17 | 0607-806 | FRAME, UPPER-SHOCK MTG-RH | 1 | $128.95 | |
| 17 | 0607-807 | FRAME, UPPER-SHOCK MTG-LH | 1 | $128.95 | |
| 18 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 19 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 20 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 21 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 22 | 1623-625 | PLUG,CENTER PAN | 1 | $1.09 | |
| 23 | 5606-318 | CLOSE OFF,COVER-FRONT END-F/C | 1 | $30.95 | |
| 24 | 4606-770 | TAB,RESONATOR MTG | 1 | $9.59 | |
| 25 | 0612-111 | BUMPER,MOLDED-RUBBER | 1 | $16.49 | |
| 26 | 0423-557 | SCREW,SHLDR-TSPH M6-1.0X18MM Z&Y W/2353 | 1 | $0.68 | |
| 27 | 6606-028 | BRKT,SEAT RETAINER-NON ADJUSTABLE | 1 | $3.57 | |
| 28 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 29 | 6606-056 | SUPPORT, TUNNEL-RH | 1 | $45.95 | |
| 29 | 6606-057 | SUPPORT, TUNNEL-LH | 1 | $45.95 | |
| 30 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 31 | 5606-701 | ENDCAP,TUNNEL-FORMED | 1 | $38.95 | |
| 32 | 4706-664 | BUMPER,REAR-W/INSERTS | 1 | $126.95 | |
| 33 | 0423-391 | INSERT,M6X1.0-AL SERIES ALS4-610-4.2 | 1 | $3.57 | |
| 34 | 4706-547 | SNOWFLAP,SHORT-'09 CF | 1 | $82.95 | |
| 35 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 36 | 0609-863 | TAILLIGHT,LED-1.5" X 9.5" (10" LEAD)RED | 1 | $112.95 | |
| 37 | 0623-301 | SCREW,SELF TAP-HWH 10X1/2 AB Z&Y | 1 | $0.12 | |
| 38 | 8611-720 | DECAL,REFLECTOR-RED-RH | 1 | $30.95 | |
| 38 | 8611-721 | DECAL,REFLECTOR-RED-LH | 1 | $30.95 |
