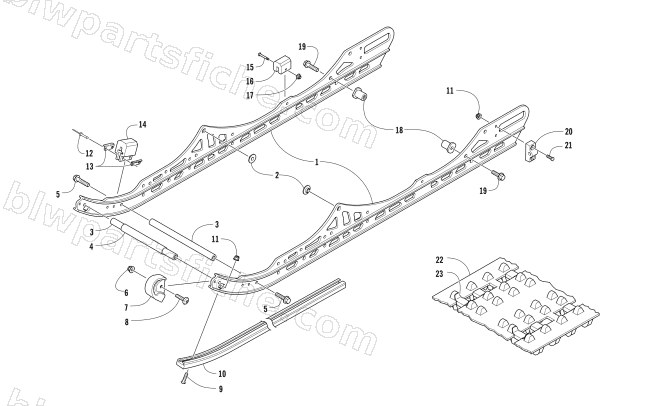

SLIDE RAIL AND TRACK ASSEMBLY
2018 LYNX 2000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3604-572 | RAIL,SUSP-128" FORMED/MACH | 1 | $318.95 | |
| 2 | 3604-266 | INSERT,RAIL-M10 X 25 | 1 | $3.30 | |
| 3 | 3604-268 | AXLE,ALUM-M8 X 222.25 | 1 | $29.95 | |
| 4 | 2604-281 | SPACER,ALUMINUM-LIMITER STRAPS -5.38" | 1 | $13.73 | |
| 5 | 8408-826 | SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353 | 1 | $0.40 | |
| 6 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 7 | 4604-093 | NOSEPIECE,RAIL-28.45mm WIDE | 1 | $6.75 | |
| 8 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 9 | 0123-859 | SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z&Y | 1 | $1.09 | |
| 10 | 3604-186 | WEARSTRIP,SLIDE RAIL-46.25" | 1 | $32.95 | |
| 11 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 12 | 8060-633 | RIVET,BLIND-DH AA614 BLK | 1 | $1.09 | |
| 13 | 0604-967 | BRACKET,RETAINING-SHOCK PAD | 1 | $3.57 | |
| 14 | 0604-918 | PAD,SHOCK-RUBBER | 1 | $13.73 | |
| 15 | 8470-540 | SCREW,MACH-TSPNH M5X0.8X40 CL8.8 Z&Y | 1 | $1.37 | |
| 16 | 1604-429 | PAD,SHOCK-RUBBER | 1 | $6.75 | |
| 17 | 8427-502 | NUT,HEX FLG-NYL LOCK M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 18 | 3604-979 | AXLE,OFFSET ARM-M10 | 1 | $3.57 | |
| 19 | 8408-031 | SCREW,CAP-HFH M10X1.25X30 CL8.8 W/2353 | 1 | $2.06 | |
| 20 | 0704-352 | ADJUSTER,TRACK-MACH. | 1 | $24.77 | |
| 21 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 22 | 2602-096 | TRACK,15X128X 1" CHALLENGER LP | 1 | $833.95 | |
| 23 | 2602-385 | CLIP,GUIDE | 1 | $4.40 |
