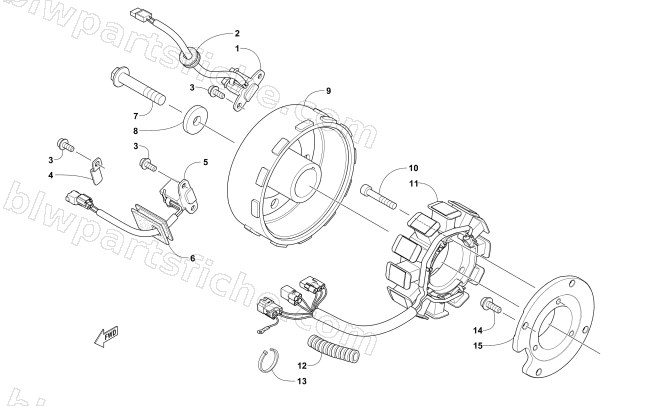

2018 Arctic Cat M 8000 HARDCORE 153 EARLY BUILD — MAGNETO
2018 M 8000 HARDCORE 153 EARLY BUILD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0902-005 | SENSOR, IGNITION TIMING | 1 | $327.95 | |
| 2 | 0902-022 | GROMMET, 6.24 X 9.74 | 1 | $1.23 | |
| 3 | 0923-002 | SCREW,CAP-TSRDWH M5X.8X12 CL 10.9 | 1 | $0.55 | |
| 4 | 0902-020 | PLATE, STATOR LEAD WIRE | 1 | $3.44 | |
| 5 | 0902-006 | SENSOR, IGNITION TIMING | 1 | $333.95 | |
| 6 | 0902-021 | GROMMET, STATOR LEAD WIRE | 1 | $2.06 | |
| 7 | 0923-033 | SCREW,CAP-HFH M10X1.25X54 CL10.9 | 1 | $4.26 | |
| 8 | 0923-032 | WASHER,FLAT-M10X28 | 1 | $7.30 | |
| 10 | 0923-027 | SCREW, CAP-TSH M6X1X35 CL10.9 W/2510 | 1 | $4.26 | |
| 11 | 0902-049 | STATOR-HD | 1 | $369.95 | |
| 12 | 1619-131 | LOOM,PROTECTIVE-3/4 ID-12"-CTL | 1 | $3.44 | |
| 13 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 14 | 0923-024 | SCREW,CAP-TSRDWH M6X1X16 CL 10.9 | 1 | $1.09 | |
| 15 | 0902-014 | BASE, STATOR-PLATE | 1 | $141.95 |
