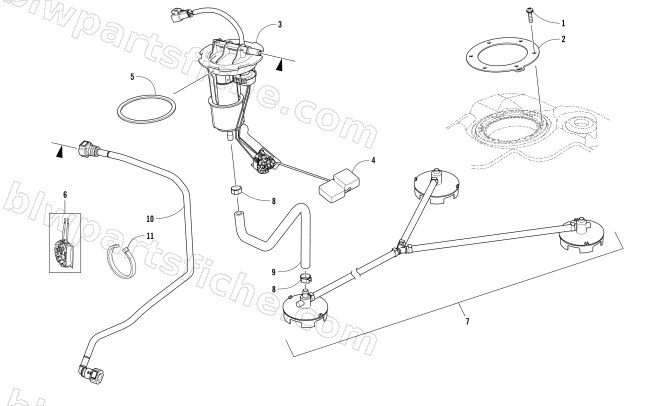

FUEL PUMP ASSEMBLY
2018 M 8000 MOUNTAIN CAT 162 EARLY BUILD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 2 | 2670-042 | MOUNT,FUEL PUMP | 1 | $26.95 | |
| 3 | 2670-358 | PUMP,FUEL-2 STRK 600-SERVICE | 1 | $536.95 | |
| 4 | 2670-235 | FLOAT,FUEL PUMP-WALBRO 75-22 | 1 | $6.89 | |
| 5 | 0470-838 | SEAL,FUEL-PUMP | 1 | $3.16 | |
| 7 | 2670-377 | PICKUP,FUEL-3MP | 1 | $145.95 | |
| 8 | 0610-563 | CLAMP, HOSE-13.2MM-15.7MM | 1 | $1.78 | |
| 9 | 2670-442 | HOSE,FUEL PUMP/PICKUP | 1 | $76.95 | |
| 11 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 11 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
