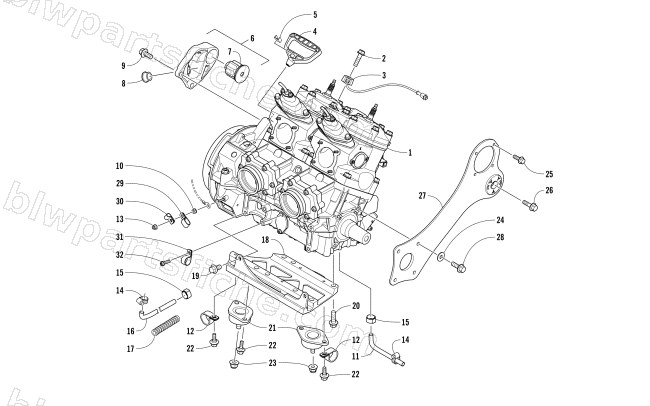

ENGINE AND RELATED PARTS
2018 M 8000 SE 153
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0962-055 | ENGINE,800 CWI-ASSY-L B ASSY | 1 | $4,117.95 | |
| 1 | 0962-053 | ENGINE,800 CWI-ASSY-S B ASSY | 1 | $2,573.95 | |
| 2 | 0923-049 | SCREW, CAP-HFH M8X1.25X35 CL8.8 W/2353 | 1 | $12.35 | |
| 3 | 0902-024 | SENSOR, KNOCK | 1 | $69.95 | |
| 4 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 5 | 0606-885 | CAP,RECOIL HANDLE | 1 | $1.37 | |
| 6 | 0708-582 | MOUNT,MAG-FABR | 1 | $42.95 | |
| 7 | 0608-630 | MOUNT,ENGINE | 1 | $42.95 | |
| 8 | 0608-633 | BUSHING,RECOIL ROPE | 1 | $0.68 | |
| 9 | 8409-026 | SCREW,CAP-HFH M10X1.25X25 CL10.9 W/2353 | 1 | $1.50 | |
| 10 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 12 | 1623-080 | CLAMP, FLEX SHAFT (550/600) | 1 | $1.50 | |
| 13 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 14 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 | |
| 15 | 0610-563 | CLAMP, HOSE-13.2MM-15.7MM | 1 | $1.78 | |
| 16 | 0610-779 | HOSE,COOLANT-MAG/THROTTLE BODY(21.00") | 1 | $45.95 | |
| 17 | 0619-776 | CONDUIT,FLEXIBLE-.62 ID-CTL 5' | 1 | $13.73 | |
| 19 | 8409-821 | SCREW,CAP-HFH M8X1.25X20 CL10.9 W/2353 | 1 | $0.68 | |
| 20 | 8409-036 | SCREW,CAP-HFH M10X1.25X35 CL10.9 W/2353 | 1 | $1.92 | |
| 22 | 1623-944 | SCREW,SHLDER-HFH-M6-1.0X18 CLR.8 Z&Y | 1 | $1.92 | |
| 23 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 24 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 25 | 8408-621 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y W/2353 | 1 | $0.95 | |
| 26 | 8408-826 | SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353 | 1 | $0.40 | |
| 27 | 0708-680 | PLATE,MTG-PTO-309.8MM-FABR | 1 | $200.95 | |
| 29 | 1623-733 | CLAMP,DOUBLE TUBE-.375 DIA | 1 | $1.78 | |
| 30 | 1623-676 | CLAMP,SPEED SENSOR | 1 | $1.50 | |
| 31 | 1623-675 | CLAMP,CABLE,11/16 INSUL-1/4" MTG | 1 | $1.92 | |
| 32 | 0923-025 | SCREW,CAP-TSRDWH M6X1X20 CL 10.9 | 1 | $0.54 |
