2018 Arctic Cat M 8000 SE ES 153 — CONSOLE ASSEMBLY

2018 M 8000 SE ES 153

Scroll / pinch to zoom · drag to pan · double-click resets

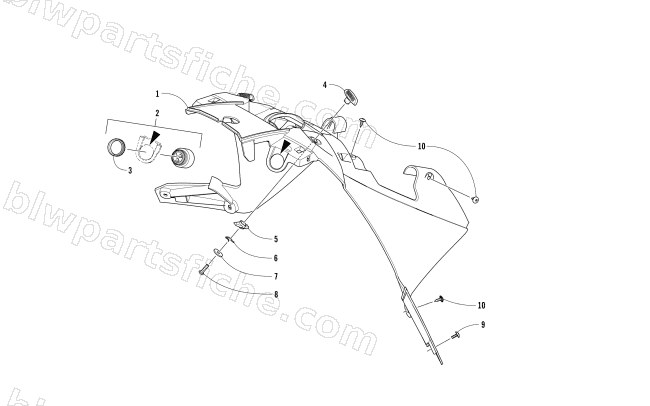

CONSOLE ASSEMBLY diagram
# Part No. Description Qty Price
1 7606-469 CONSOLE,2 STRK-BLK-ROUTED(NON-TEL) 1 $78.95
2 0630-243 ALARM,REVERSE-DC ONLY 1 $106.95
3 0630-017 RING,RETAINING-REV ALARM 1 $12.35
8 1623-933 SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B 1 $0.26
