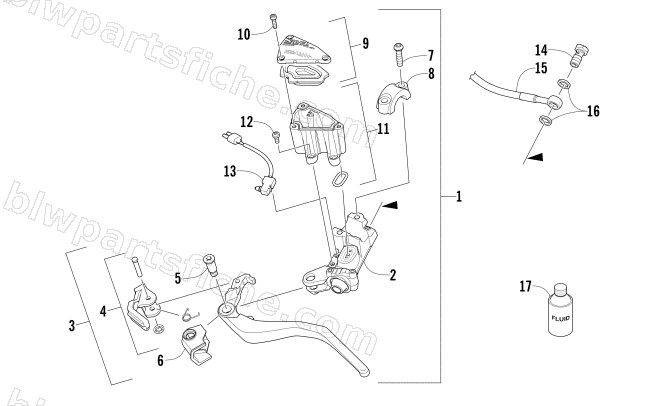

HYDRAULIC BRAKE CONTROL ASSEMBLY
2018 M 8000 SNO PRO 153 3.0
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2602-477 | CYLINDER,MASTER-RACE | 1 | $322.95 | |
| 2 | 2602-479 | PISTON,SUB ASSY-W/RESERVIOR BODY | 1 | $322.95 | |
| 3 | 2602-427 | LEVER & PARK LEVER-SUB ASSY | 1 | $131.95 | |
| 4 | 2602-428 | PARK LEVER-SUB ASSY | 1 | $43.95 | |
| 5 | 2602-624 | PIN,PIVOT-M8 | 1 | $19.25 | |
| 6 | 2602-625 | BOOT,PIVOT PIN | 1 | $30.95 | |
| 7 | 1602-936 | CLAMP SCREWS-BRAKE | 1 | $19.25 | |
| 8 | 0502-869 | CLAMP(BLACK) | 1 | $53.95 | |
| 9 | 2602-429 | RESERVOIR COVER-SUB ASSY | 1 | $32.95 | |
| 10 | 2602-430 | KIT,SCREWS-RESERVOIR COVER | 1 | $5.37 | |
| 11 | 2602-433 | RESERVOIR-W/MOUNT SCREWS | 1 | $49.95 | |
| 13 | 2602-432 | SWITCH,STOPLIGHT | 1 | $88.95 | |
| 14 | 0423-413 | BOLT,BANJO FITTING-20mm | 1 | $4.13 | |
| 16 | 0423-178 | WASHER,CRUSH | 1 | $1.78 | |
| 17 | 5639-848 | DOT 4 BRAKE FLUID - 12 OZ | 1 | $13.73 |
