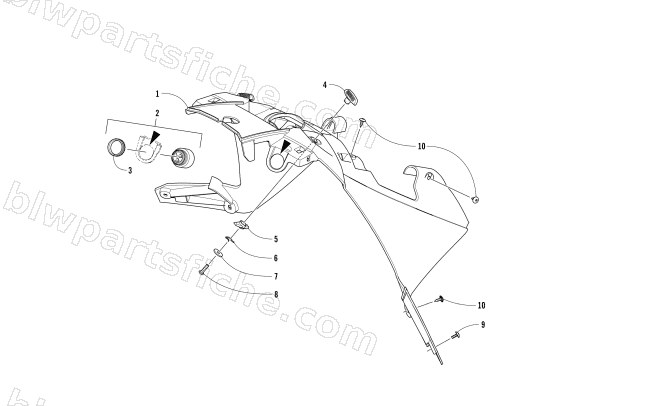

2018 Arctic Cat M 8000 SNO PRO 153 EARLY RELEASE — CONSOLE ASSEMBLY
2018 M 8000 SNO PRO 153 EARLY RELEASE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 7606-477 | CONSOLE,2 STRK-DYN GRAY-ROUTED(NON-TEL) | 1 | $78.95 | |
| 2 | 0630-243 | ALARM,REVERSE-DC ONLY | 1 | $106.95 | |
| 3 | 0630-017 | RING,RETAINING-REV ALARM | 1 | $12.35 | |
| 8 | 1623-933 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B | 1 | $0.26 |
