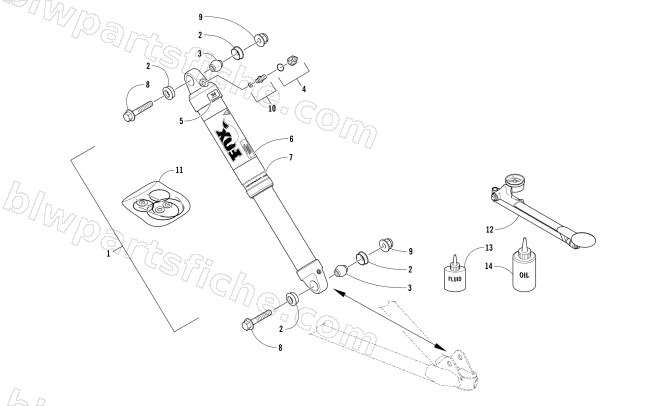

2018 Arctic Cat M 8000 SNO PRO 153 EARLY RELEASE — FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY
2018 M 8000 SNO PRO 153 EARLY RELEASE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3603-260 | BUSHING,SHOCK-SPHERICAL-BLK | 1 | $3.44 | |
| 3 | 3603-261 | AXLE,SHOCK - SPHERICAL | 1 | $16.49 | |
| 4 | 3603-366 | CAP,VALVE-FLOAT GEN II-BLK-W/ O-RING | 1 | $38.95 | |
| 5 | 3603-359 | DECAL,AIR PRESSURE | 1 | $10.97 | |
| 6 | 3603-369 | DECAL,FLOAT 3-W/WARNINGS | 1 | $17.87 | |
| 7 | 3603-365 | DECAL,BAND-PERFORMANCE SERIES | 1 | $17.87 | |
| 8 | 8413-850 | SCREW,CAP-HFH M8X1.25X50 CL10.9 SILV | 1 | $3.44 | |
| 9 | 8437-804 | NUT,HEX FLG-NYL LOCK M8X1.25 CL10 SILV | 1 | $0.81 | |
| 10 | 2603-511 | VALVE,AIR-LOW TEMP (FOX) | 1 | $32.95 | |
| 11 | 3603-293 | KIT,REBUILD-SEAL/BEARING | 1 | $110.95 | |
| 12 | 0641-257 | PUMP,FOX FLOAT EVOL-DUAL GAUGE | 1 | $69.95 | |
| 13 | 4639-012 | FLOAT FLUID,FOX RACING SHOX-8 OZ | 1 | $18.95 | |
| 14 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
