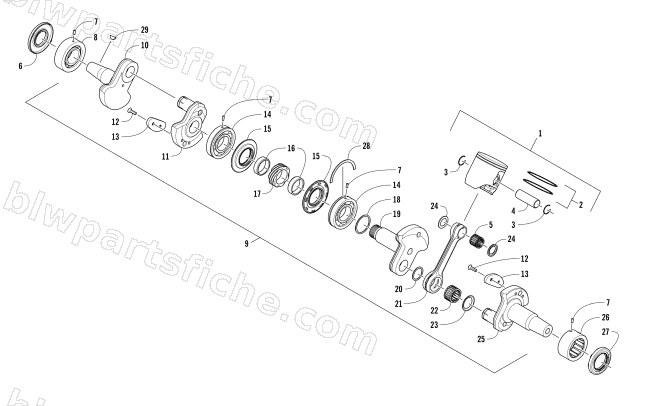

PISTON AND CRANKSHAFT
2018 M 8000 SNO PRO 153 EARLY RELEASE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0905-187 | PISTON, 85.0-ASSY GIL G1-SP | 1 | $266.95 | |
| 2 | 0905-176 | RING, 85.0-CAST | 1 | $54.95 | |
| 3 | 0931-011 | CIRCLIP- 22MM | 1 | $22.01 | |
| 4 | 0905-160 | PIN, PISTON | 1 | $38.95 | |
| 6 | 0930-039 | SEAL,OIL-MAG (35X75X7) | 1 | $19.25 | |
| 7 | 0929-004 | DOWEL, 4 X 10 | 1 | $10.97 | |
| 8 | 0932-004 | R/B 0932-030 | 1 | $190.95 | |
| 9 | 1905-004 | CRANKSHAFT,800- ASSY | 1 | $2,058.95 | |
| 12 | 0905-045 | SCREW,CRANKSHAFT BALANCER | 1 | $1.37 | |
| 13 | 0905-040 | BALANCER,CRANKSHAFT | 1 | $20.63 | |
| 14 | 0932-001 | R/B 0932-028 | 1 | $56.95 | |
| 15 | 0930-028 | SEAL,OIL-MID CRANKSHAFT | 1 | $37.95 | |
| 16 | 0905-047 | SPACER,MIDDLE OIL SEAL | 1 | $76.95 | |
| 17 | 0905-041 | GEAR,OIL PUMP DRIVE (R10:7) | 1 | $117.95 | |
| 18 | 0905-044 | SHIM, CRANKSHAFT- 40X46X1 | 1 | $13.73 | |
| 20 | 0905-066 | SHIM, CONROD-30X37X1 | 1 | $12.35 | |
| 23 | 0905-065 | SHIM, CONROD-SPECIAL | 1 | $56.95 | |
| 26 | 0932-009 | BEARING, CRANKSHAFT-PTO | 1 | $125.95 | |
| 27 | 0930-051 | SEAL,OIL-PTO (40X64X8) | 1 | $30.95 | |
| 28 | 0905-052 | C-RING,CRANKSHAFT-75mm | 1 | $24.77 | |
| 29 | 0829-006 | WOODRUFF, CB SHAFT | 1 | $4.13 |
