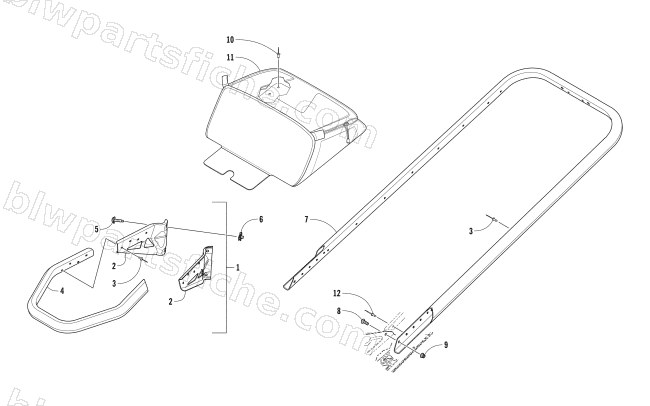

BUMPERS AND STORAGE
2018 M 8000 SNO PRO 153
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1707-598 | BUMPER,FRT-ORN-ASSY | 1 | $109.95 | |
| 2 | 1707-576 | BRKT,MTG-FRT BUMPER-RH-PTD BLK | 1 | $17.87 | |
| 2 | 1707-577 | BRKT,MTG-FRT BUMPER-LH-PTD BLK | 1 | $17.87 | |
| 3 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 4 | 1707-580 | TUBE,FRT BUMPER-PTD ORN | 1 | $74.95 | |
| 5 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 6 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 7 | 2707-593 | BUMPER,REAR-153"-PTD-ORN | 1 | $160.95 | |
| 8 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 9 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 10 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 11 | 7606-584 | BAG,TUNNEL-MTN STORAGE | 1 | $106.95 | |
| 12 | 1623-206 | RIVET,3/16 HUCK-M9 | 1 | $2.06 |
