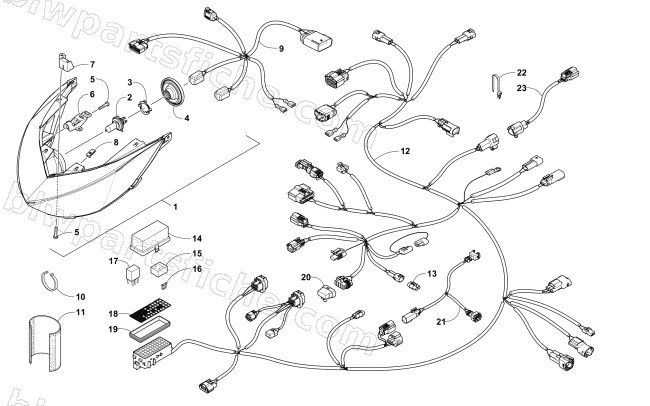

HEADLIGHT AND WIRING ASSEMBLIES
2018 M 8000 SNO PRO 162 EARLY RELEASE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0609-956 | BULB,H4 60/55 LL | 1 | $15.11 | |
| 3 | 0409-097 | RETAINER,H/L HS-1 ECE | 1 | $34.95 | |
| 4 | 0609-919 | BOOT,BULB | 1 | $29.95 | |
| 5 | 1623-915 | SCREW,PLASTITE-TSPNH-1/4-10 X 1.25 RIE B | 1 | $1.50 | |
| 8 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 10 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 10 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 10 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 11 | 6706-704 | WRAP,WIRE HARNESS-10" X 10.50" (HI TEMP) | 1 | $65.95 | |
| 13 | 0630-325 | PLUG,DIAGNOSTIC CONNECTOR | 1 | $33.95 | |
| 14 | 0430-085 | COVER,PDM (4X12) | 1 | $6.34 | |
| 15 | 0430-037 | HOLDER,SPARE FUSE-FOAM | 1 | $3.02 | |
| 16 | 0430-068 | FUSE,MINI-7.5 AMP | 1 | $2.95 | |
| 16 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 16 | 0430-098 | FUSE,MINI-20A | 1 | $2.95 | |
| 16 | 0430-030 | FUSE, MINI-30A | 1 | $2.88 | |
| 17 | 0430-033 | RELAY, SPDT-5P 12V/30A | 1 | $27.95 | |
| 18 | 3621-615 | DECAL,PWR DISTRIB MODULE-1686-785/786 | 1 | $43.95 | |
| 19 | 0430-086 | SEAL,PDM (4X12) | 1 | $2.75 | |
| 20 | 0430-103 | COVER,ASS'Y-DIAGNOSTIC CONN'R (10P) | 1 | $15.11 | |
| 21 | 1686-663 | HARNESS,INJECTOR-600R-CWI | 1 | $149.95 | |
| 22 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 | |
| 23 | 1686-642 | HARNESS, EXTENSION-TAILIGHT-1930mm | 1 | $30.95 |
