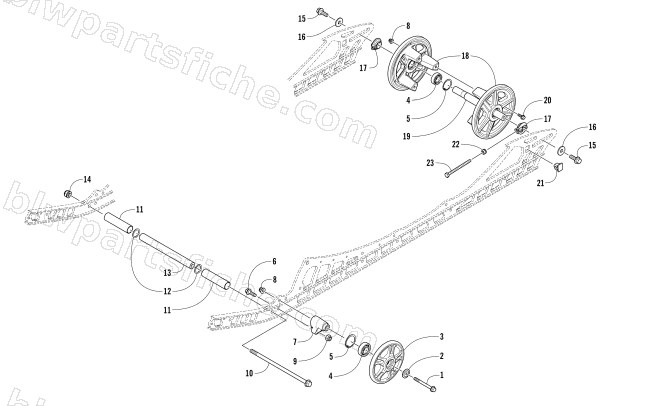

IDLER WHEEL ASSEMBLY
2018 M 8000 SNO PRO 162 EARLY RELEASE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8413-675 | SCREW,CAP-HFH M6X1.0X75 CL10.9 SILV | 1 | $3.16 | |
| 2 | 2623-025 | WASHER,STEPPED-6mm ID X 26mm OD-MZ&B | 1 | $1.37 | |
| 3 | 3604-386 | WHEEL,IDL-5.63 W.787"ID BLK (SPOKE) | 1 | $53.95 | |
| 4 | 3604-033 | BEARING,WHL-NSK CHINA 6004-W/ENS GREASE | 1 | $20.63 | |
| 5 | 0623-946 | RING,INTERNAL RETAINING-#165 | 1 | $2.06 | |
| 6 | 8413-620 | SCREW,CAP-HFH M6X1.0X20 CL10.9 SILV | 1 | $0.95 | |
| 7 | 3604-899 | BLOCK,MTG-IDLER WHEEL-TALL (MAG) | 1 | $8.21 | |
| 8 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 9 | 8422-602 | NUT,HEX-THK NYL M6X1.00 CL8 Z&Y | 1 | $0.40 | |
| 10 | 1423-431 | SCREW,CAP-HFH M10X1.25X250-CL10.9 SILVER | 1 | $6.75 | |
| 11 | 3604-083 | SPACER,FRONT ARM SHOCK | 1 | $12.35 | |
| 12 | 0623-912 | WASHER,FLAT-.890 X 1.19 X .060 Z&Y | 1 | $0.95 | |
| 13 | 3604-269 | AXLE,ALUM-22.2 X 222.2 | 1 | $60.95 | |
| 15 | 8408-031 | SCREW,CAP-HFH M10X1.25X30 CL8.8 W/2353 | 1 | $2.06 | |
| 16 | 1623-931 | WASHER,FLAT-ALUM-M10X29 | 1 | $1.50 | |
| 17 | 3604-641 | BUSHING,ADJUSTER-REAR WHEEL | 1 | $6.75 | |
| 18 | 4604-137 | WHEEL,IDL-TRI HUB-8.00 W/.787 ID | 1 | $69.95 | |
| 19 | 3604-640 | AXLE,XBRC-REAR WHEEL-215.9mm | 1 | $54.95 | |
| 20 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 21 | 3604-647 | ADJUSTER,TRACK-8mm-CAST | 1 | $3.71 | |
| 22 | 8422-802 | NUT,HEX-THK NYL M8x1.25 CL8 Z&Y | 1 | $0.40 |
