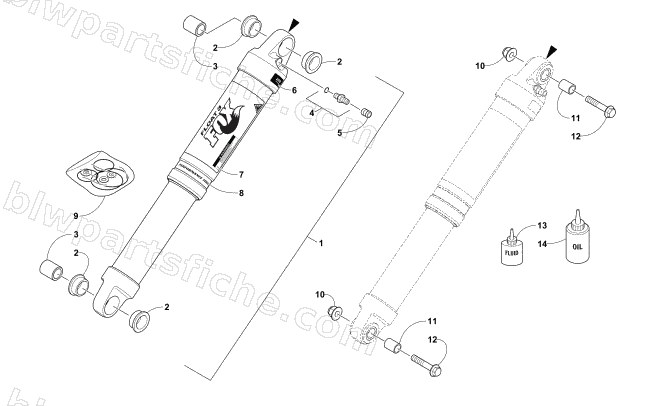

2018 Arctic Cat M 8000 SNO PRO 162 EARLY RELEASE — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2018 M 8000 SNO PRO 162 EARLY RELEASE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 3 | 2604-223 | SLEEVE, .571 X .815 X .950TLG | 1 | $33.95 | |
| 4 | 2603-511 | VALVE,AIR-LOW TEMP (FOX) | 1 | $32.95 | |
| 5 | 2603-327 | CAP,VALVE-AIR - (FOX) | 1 | $12.35 | |
| 6 | 3603-419 | DECAL,AIR PRESSURE 200PSI | 1 | $12.35 | |
| 7 | 3603-369 | DECAL,FLOAT 3-W/WARNINGS | 1 | $17.87 | |
| 8 | 3603-365 | DECAL,BAND-PERFORMANCE SERIES | 1 | $17.87 | |
| 9 | 3603-293 | KIT,REBUILD-SEAL/BEARING | 1 | $110.95 | |
| 10 | 8437-804 | NUT,HEX FLG-NYL LOCK M8X1.25 CL10 SILV | 1 | $0.81 | |
| 11 | 3604-846 | SLEEVE,SHOCK EYELET-8mm ID | 1 | $2.47 | |
| 12 | 8413-845 | SCREW,CAP-HFH M8X1.25X45 CL10.9 SILV | 1 | $0.26 | |
| 13 | 4639-012 | FLOAT FLUID,FOX RACING SHOX-8 OZ | 1 | $18.95 | |
| 14 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
