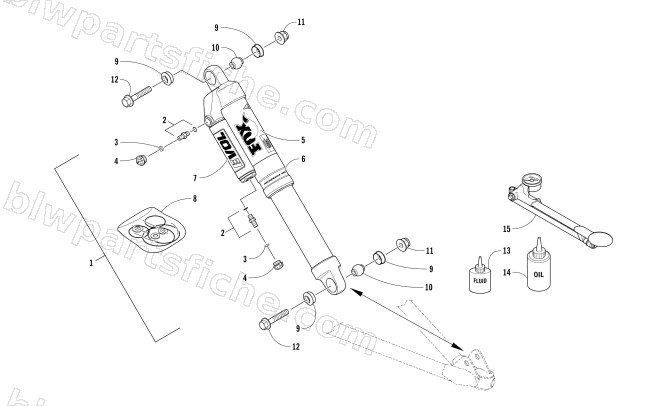

2018 Arctic Cat M 9000 KING CAT 162 EARLY BUILD — FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY
2018 M 9000 KING CAT 162 EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 2603-511 | VALVE,AIR-LOW TEMP (FOX) | 1 | $32.95 | |
| 3 | 2603-965 | SEAL,CAP-EVOL AIR VALVE-.296"ODX.125"ID | 1 | $1.64 | |
| 4 | 3603-367 | CAP,VALVE-EVOL-BLACK | 1 | $3.99 | |
| 5 | 3603-369 | DECAL,FLOAT 3-W/WARNINGS | 1 | $17.87 | |
| 6 | 3603-365 | DECAL,BAND-PERFORMANCE SERIES | 1 | $17.87 | |
| 7 | 3603-373 | DECAL,FLOAT X EVOL | 1 | $20.63 | |
| 9 | 3603-260 | BUSHING,SHOCK-SPHERICAL-BLK | 1 | $3.44 | |
| 10 | 3603-261 | AXLE,SHOCK - SPHERICAL | 1 | $16.49 | |
| 11 | 8437-804 | NUT,HEX FLG-NYL LOCK M8X1.25 CL10 SILV | 1 | $0.81 | |
| 12 | 8413-850 | SCREW,CAP-HFH M8X1.25X50 CL10.9 SILV | 1 | $3.44 | |
| 13 | 4639-012 | FLOAT FLUID,FOX RACING SHOX-8 OZ | 1 | $18.95 | |
| 14 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 | |
| 15 | 0641-257 | PUMP,FOX FLOAT EVOL-DUAL GAUGE | 1 | $69.95 |
