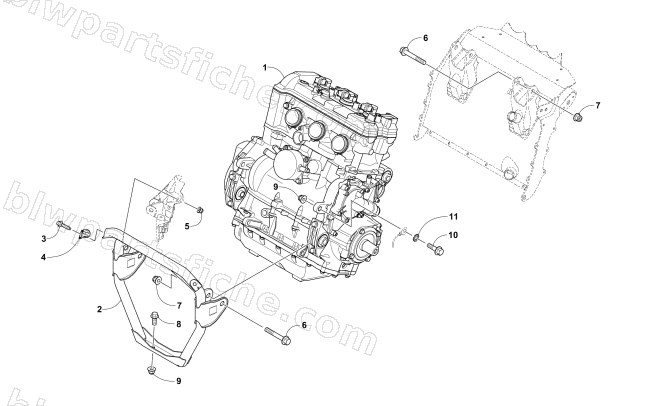

ENGINE AND RELATED PARTS
2018 PANTERA 7000 LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 8408-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 Z&Y | 1 | $0.95 | |
| 4 | 1607-002 | INSERT,UPPER SPAR | 1 | $1.92 | |
| 5 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 7 | 8427-202 | NUT,HEX FLG-NYL LOCK M12X1.25 CL8 Z&Y | 1 | $1.23 | |
| 8 | 8408-025 | SCREW,CAP-HFH M10X1.25X25 CL8.8 Z&Y | 1 | $3.16 | |
| 9 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 10 | 8408-030 | SCREW,CAP-HFH M10X1.25X30 CL8.8 Z&Y | 1 | $1.78 | |
| 11 | 8053-272 | WASHER,LOCK-3/8 EXT TOOTH TYP A Z&Y | 1 | $0.26 |
