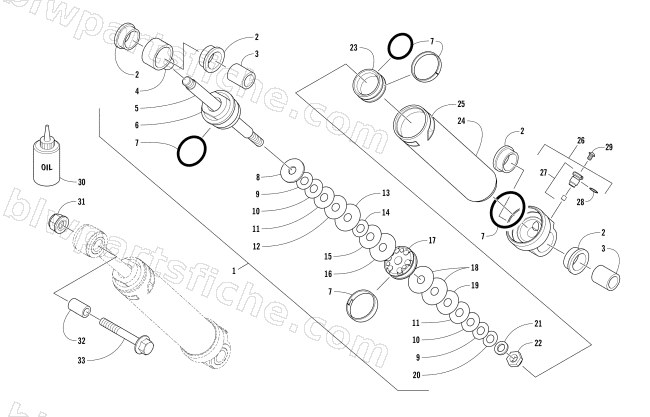

REAR SUSPENSION REAR ARM SHOCK ABSORBER

2018 PANTERA 7000 LTD

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	2704-684	SHOCK, REAR-384 TOUR	1	$190.95
2	3604-738	BUSHING,REAR SHOCK	1	$17.87
3	3604-737	SLEEVE - 20.65 OD X 14.5 ID X 24.2	1	$12.35
4	3604-796	EYELET,REAR ARM-FORGED	1	$89.95
5	3604-810	SHAFT,CHROME-12.66mm X 195.2mm	1	$114.95
6	4604-126	BEARING, ENDCAP - LONG - W/BLEED ASSY	1	$49.95
7	4604-121	SEAL/BEARING - REBUILD KIT-37MM	1	$58.95
8	3604-789	WASHER.TOP OUT-29.5 OD X 9.60 ID X 2 THK	1	$3.95
9	3603-105	VALVE,SHOCK-20.32 OD X .25 (9.6 ID)	1	$6.95
10	3603-115	VALVE,SHOCK-22.86 OD X .25 (9.6 ID)	1	$6.95
11	3603-125	VALVE,SHOCK-25.4 OD X .25 (9.6 ID)	1	$6.95
12	3603-145	VALVE,SHOCK-27.94 OD X .25 (9.6 ID)	1	$6.95
13	3603-175	VALVE,SHOCK-31.75 OD X .25 (9.6 ID)	1	$6.95
14	3603-112	VALVE,SHOCK-.22.86 OD X 0.15 (9.6 ID)	1	$6.95
15	3603-144	VALVE,SHOCK-27.94 OD X 0.2 (9.6 ID)	1	$6.95
16	3603-186	VALVE,SHOCK-33.02 OD X 0.3 (9.6 ID)	1	$6.95
17	2603-998	PISTON, 37 BORE-1.60 ORIFICE	1	$40.95
18	3603-176	VALVE,SHOCK-31.75 OD X 0.3 (9.6 ID)	1	$6.95
19	3603-146	VALVE,SHOCK-27.94 OD X 0.3 (9.6 ID)	1	$6.95
20	3603-095	VALVE,SHOCK-17.78 OD X .25 (9.60 ID)	1	$5.95
21	3604-775	WASHER, BACKUP-15.8 OD X 2.4 X (9.6 ID)	1	$3.95
22	3604-739	NUT, HEX - 3/8"-24UNF	1	$4.95
23	3604-772	PISTON.FLOAT-ASSY	1	$35.95
24	3604-811	BODY SHOCK-ALUM-37.20 BORE-194.82mm	1	$161.95
25	1621-728	DECAL,WARNING-HIGH PRESSURE SHOCK	1	$3.44
26	2704-257	BODY,CAP-ALUM BODY-ASSY	1	$164.95
29	3604-750	SCREW.MACH-#8-32 X 5mm-SS	1	$2.47
30	5639-530	SEMI-SYN SHOCK OIL-1 QUART	1	$26.95
32	3604-109	SLEEVE,SHOCK EYELET-10mm ID	1	$4.40
33	8408-045	SCREW,CAP-HFH M10X1.25X45 CL8.8 Z&Y	1	$4.68
