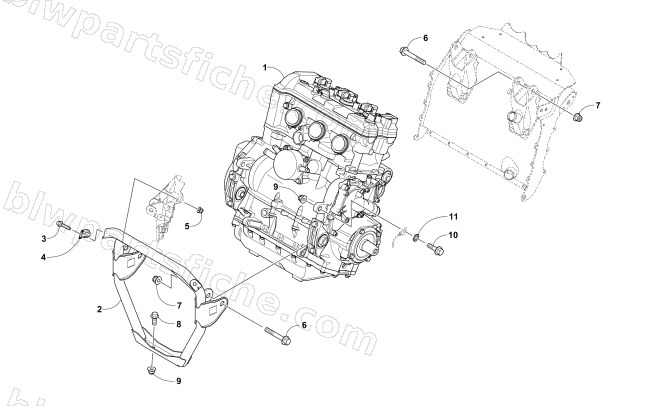

2018 Arctic Cat XF 7000 CROSSTREK 137 — ENGINE AND RELATED PARTS
2018 XF 7000 CROSSTREK 137
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 8408-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 Z&Y | 1 | $0.95 | |
| 4 | 1607-002 | INSERT,UPPER SPAR | 1 | $1.92 | |
| 5 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 7 | 8427-202 | NUT,HEX FLG-NYL LOCK M12X1.25 CL8 Z&Y | 1 | $1.23 | |
| 8 | 8408-025 | SCREW,CAP-HFH M10X1.25X25 CL8.8 Z&Y | 1 | $3.16 | |
| 9 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 10 | 8408-030 | SCREW,CAP-HFH M10X1.25X30 CL8.8 Z&Y | 1 | $1.78 | |
| 11 | 8053-272 | WASHER,LOCK-3/8 EXT TOOTH TYP A Z&Y | 1 | $0.26 |
