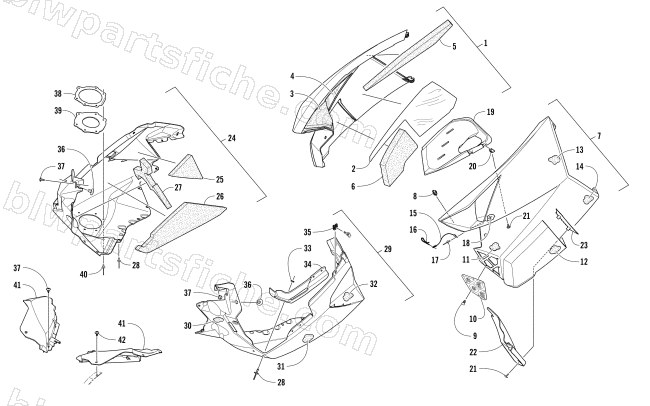

2018 Arctic Cat XF 7000 CROSSTREK 137 — SKID PLATE AND SIDE PANEL ASSEMBLY
2018 XF 7000 CROSSTREK 137
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5718-658 | PANEL,SIDE-BLK RH-W/DECALS(7000 CT) | 1 | $291.95 | |
| 1 | 3718-312 | PANEL,SIDE-RH WITH FOAM-BLK (4 STROKE) | 1 | $259.95 | |
| 2 | 6606-416 | FOIL,PROTECTIVE-LWR SIDE PANEL-REAR-RH | 1 | $3.57 | |
| 3 | 0617-626 | FOAM,UPPER SIDE PANEL-FRT-RH | 1 | $4.26 | |
| 4 | 6606-414 | FOIL,PROTECTIVE-MIDDLE SIDE PANEL-RH | 1 | $1.92 | |
| 5 | 0617-628 | FOAM,UPPER SIDE PANEL-REAR-RH | 1 | $37.95 | |
| 6 | 0617-632 | FOAM,LWR SIDE PANEL-FRT-RH | 1 | $22.01 | |
| 7 | 5718-659 | PANEL,SIDE-BLK LH W/DECALS(7000 CT) | 1 | $291.95 | |
| 7 | 4718-101 | PANEL,SIDE-LH-W/FOAM-BLK | 1 | $267.95 | |
| 8 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 9 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 10 | 2602-704 | SCREEN, AIR DEFLECTOR | 1 | $19.25 | |
| 11 | 0617-631 | FOAM,MIDDLE SIDE PANEL-LH | 1 | $4.26 | |
| 12 | 0617-681 | FOAM,LWR SIDE PANEL-FRT-LH | 1 | $5.65 | |
| 13 | 0617-629 | FOAM,UPPER SIDE PANEL-REAR-LH | 1 | $16.49 | |
| 14 | 0617-635 | FOAM,LWR SIDE PANEL-REAR-LH | 1 | $12.35 | |
| 15 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 16 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 17 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 18 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 19 | 1702-369 | DUCT,AIR-CLUTCH W/FOIL | 1 | $39.95 | |
| 20 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 22 | 2602-711 | DEFLECTOR,AIR | 1 | $19.25 | |
| 23 | 2602-703 | RETAINER,AIR DEFLECTOR | 1 | $12.35 | |
| 24 | 3718-788 | PLATE,SKID-REAR RH W/FOAM | 1 | $167.95 | |
| 25 | 0617-640 | FOAM,SKID PLATE-REAR-RH | 1 | $3.57 | |
| 26 | 0617-638 | FOAM,SKID PLATE-MIDDLE-RH | 1 | $43.95 | |
| 27 | 0617-636 | FOAM,SKID PLATE-FRT-RH | 1 | $37.95 | |
| 28 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 29 | 3718-789 | PLATE,SKID-REAR LH W/FOAM | 1 | $110.95 | |
| 30 | 0617-637 | FOAM,SKID PLATE-FRT-LH | 1 | $16.49 | |
| 31 | 0617-639 | FOAM,SKID PLATE-MIDDLE-LH | 1 | $16.49 | |
| 32 | 0617-641 | FOAM,SKID PLATE-REAR-LH | 1 | $3.99 | |
| 33 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 34 | 6606-613 | RETAINER,TAB-SIDE PANEL | 1 | $12.35 | |
| 35 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 36 | 6606-592 | PIN,RETAINER-BODY PLASTIC | 1 | $3.57 | |
| 38 | 2612-685 | PLATE,EXHAUST-OUTLET | 1 | $58.95 | |
| 39 | 2612-964 | SEAL,EXHAUST OUTLET-7000 | 1 | $12.35 | |
| 40 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 41 | 6606-342 | PANEL,FILLER-RH-BLK | 1 | $19.25 | |
| 41 | 6606-579 | PANEL,FILLER-LH BK-Z3 | 1 | $34.95 |
