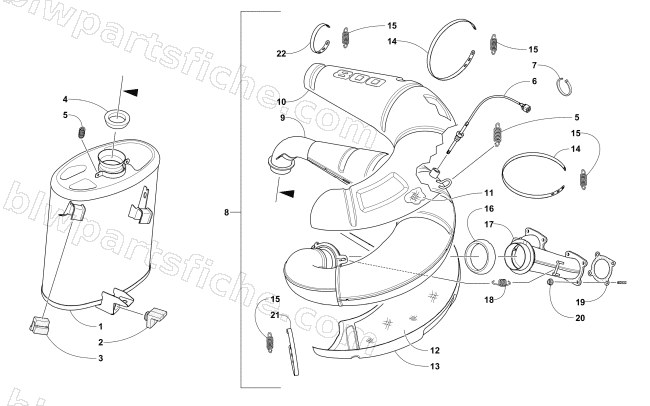

2018 Arctic Cat XF 8000 CROSS COUNTRY LTD ES 137 — EXHAUST ASSEMBLY
2018 XF 8000 CROSS COUNTRY LTD ES 137
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2712-080 | RESONATOR,EXT-SIL CERAMIC COATED-800 | 1 | $990.95 | |
| 2 | 2612-706 | GROMMET,RUBBER-LOWER | 1 | $5.65 | |
| 3 | 2612-893 | GROMMET,RUBBER-UPR | 1 | $17.87 | |
| 4 | 1612-619 | GASKET,EXHAUST-TAIL PIPE (03 900) | 1 | $26.95 | |
| 5 | 2612-949 | SPRING,EXHAUST-2.70" | 1 | $5.51 | |
| 6 | 0630-330 | SENSOR,EXHAUST TEMP-M14 X 1.5 | 1 | $213.95 | |
| 7 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 8 | 2712-072 | CHAMBER,EXPANSION-8000 DSI-FABR | 1 | $647.95 | |
| 9 | 2712-075 | CHAMBER,EXP-8000 DSI-PTD BLK | 1 | $479.95 | |
| 14 | 2612-786 | BAND,TIE - 430mm MAX | 1 | $3.57 | |
| 15 | 1612-178 | SPRING, EXHAUST STRAP | 1 | $3.85 | |
| 16 | 2612-059 | GASKET, EXHAUST - HEADPIPE | 1 | $30.95 | |
| 17 | 1712-996 | MANIFOLD,EXHAUST-MACH(SS) | 1 | $263.95 | |
| 19 | 0930-016 | GASKET,EXHAUST | 1 | $19.25 | |
| 20 | 8424-604 | NUT,HEX-FLG M6X1.0 CL8 RIE SIL | 1 | $0.54 | |
| 21 | 2612-785 | BAND,TIE - 315mm MAX | 1 | $3.16 | |
| 22 | 2612-784 | BAND,TIE - 180mm MAX | 1 | $2.75 |
