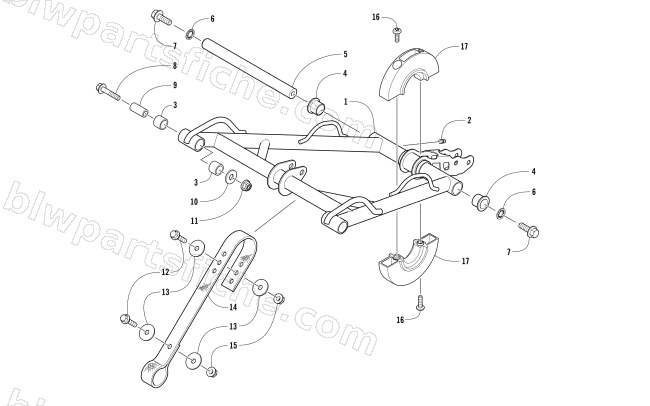

2018 Arctic Cat XF 8000 HIGH COUNTRY LTD ES 141 — REAR SUSPENSION FRONT ARM ASSEMBLY
2018 XF 8000 HIGH COUNTRY LTD ES 141
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2704-418 | ARM,FRT-W/PIVOT-BLK-FABR | 1 | $320.95 | |
| 2 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 3 | 0604-889 | BUSHING,FRONT ARM | 1 | $3.71 | |
| 4 | 3604-028 | BUSHING, FLARED -BRONZE .735" x .751 ID | 1 | $3.57 | |
| 5 | 3604-853 | AXLE,ALUM-19.05 X 219.35-MACH | 1 | $29.95 | |
| 6 | 1623-992 | WASHER,LOCK-M10 INTL TOOTH TYP J Z&C | 1 | $0.26 | |
| 7 | 8413-031 | SCREW,CAP-HFH M10X1.25X30 CL10.9 W/2353 | 1 | $2.61 | |
| 8 | 8408-065 | SCREW,CAP-HFH M10X1.25X65 CL8.8 Z&Y | 1 | $3.16 | |
| 9 | 3604-665 | AXLE,FRONT ARM-15.88OD X 10.3ID X 41.6MM | 1 | $19.25 | |
| 10 | 8450-163 | WASHER,FLAT-M10-11.12X28.00 X 2.80Z&Y | 1 | $0.95 | |
| 11 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 12 | 8408-630 | SCREW,CAP-HFH M6X1.0X30 CL8.8 Z&Y | 1 | $0.95 | |
| 13 | 8450-109 | WASHER,FLAT M6-6.87X25.4X2.32 Z&Y | 1 | $0.68 | |
| 14 | 3604-391 | STRAP,LIMITER-FRONT ARM | 1 | $15.11 | |
| 15 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 16 | 1623-251 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&Y | 1 | $0.26 |
