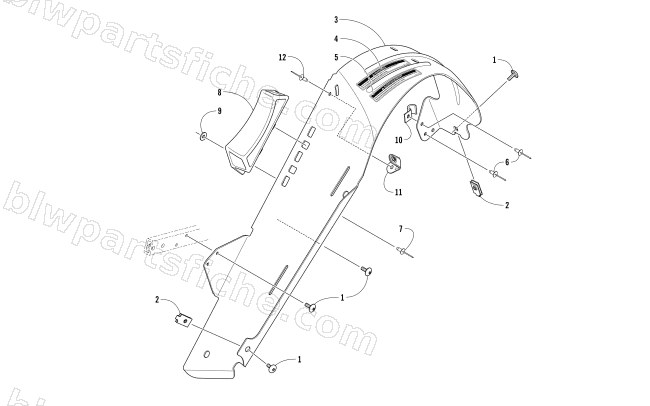

2018 Arctic Cat XF 8000 HIGH COUNTRY LTD ES 153 — BELT GUARD ASSEMBLY
2018 XF 8000 HIGH COUNTRY LTD ES 153
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 1623-052 | NUT,U | 1 | $0.95 | |
| 3 | 3707-078 | GUARD,CLUTCH-DSI-W/DECALS | 1 | $154.95 | |
| 4 | 9611-690 | DECAL,WARNING-GUARD-ENGLISH | 1 | $3.16 | |
| 5 | 9611-691 | DECAL,WARNING-GUARD-FRENCH (9611-690) | 1 | $3.16 | |
| 6 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 7 | 8060-688 | RIVET,BLIND-DH SS66 ZINC | 1 | $0.40 | |
| 8 | 3612-016 | PAD,MOUNTING-EXP CHAMBER | 1 | $30.95 | |
| 9 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 10 | 1623-786 | CLAMP,WIRE-HALF-3/8"-VINYL COATED | 1 | $16.49 | |
| 11 | 3612-037 | TAB,RESONATOR MOUNT | 1 | $5.37 | |
| 12 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 |
