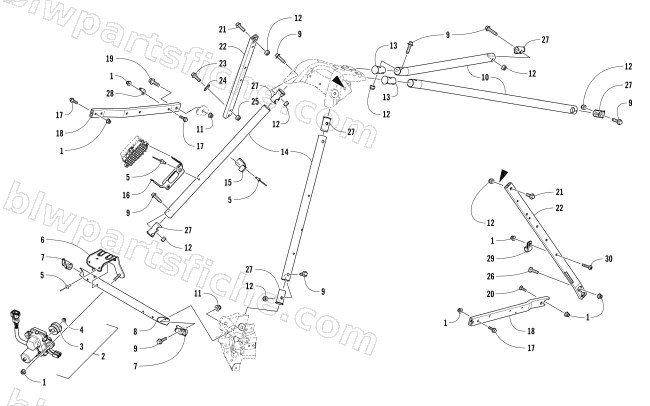

2018 Arctic Cat XF 8000 HIGH COUNTRY LTD ES 153 — STEERING SUPPORT ASSEMBLY
2018 XF 8000 HIGH COUNTRY LTD ES 153
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 2 | 0902-012 | ACTUATOR ASSY, EXHAUST VALVE | 1 | $715.95 | |
| 3 | 0902-019 | PULLEY,CONTROLLER | 1 | $54.95 | |
| 5 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 7 | 1607-002 | INSERT,UPPER SPAR | 1 | $1.92 | |
| 8 | 1707-582 | TUBE,SUPPORT-SHOCK TOWER-PTD BLK | 1 | $19.95 | |
| 11 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 12 | 8422-802 | NUT,HEX-THK NYL M8x1.25 CL8 Z&Y | 1 | $0.40 | |
| 13 | 1607-680 | INSERT,UPPER SPAR-10MM MALE | 1 | $3.57 | |
| 14 | 2707-424 | SPAR,UPR FRT-PTD BLK | 1 | $24.77 | |
| 15 | 1623-938 | CLAMP,THROTTLE/FUEL LINE | 1 | $2.47 | |
| 16 | 0645-653 | BRACKET,PDM | 1 | $20.63 | |
| 17 | 8408-630 | SCREW,CAP-HFH M6X1.0X30 CL8.8 Z&Y | 1 | $0.95 | |
| 18 | 0607-248 | SPAR,SIDE-RH-2 STROKE | 1 | $54.95 | |
| 18 | 1607-583 | SPAR,SIDE-LH | 1 | $68.95 | |
| 19 | 8408-885 | SCREW,CAP-HFH M8X1.25X85 CL8.8 Z&Y | 1 | $2.75 | |
| 20 | 1623-917 | BOLT,CARRIAGE-M6X1.0X20 Z&Y CL 8.8 | 1 | $0.95 | |
| 21 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 22 | 0607-252 | SUPPORT,STEERING-RH | 1 | $77.95 | |
| 22 | 1607-581 | SUPPORT,STEERING-LH | 1 | $45.95 | |
| 23 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 24 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 25 | 8422-602 | NUT,HEX-THK NYL M6X1.00 CL8 Z&Y | 1 | $0.40 | |
| 26 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 28 | 2612-707 | TAB,RESONATOR MTG | 1 | $3.02 | |
| 29 | 2623-083 | CLAMP,WIRE-.500IN-VINYL COATED | 1 | $1.50 | |
| 30 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 |
