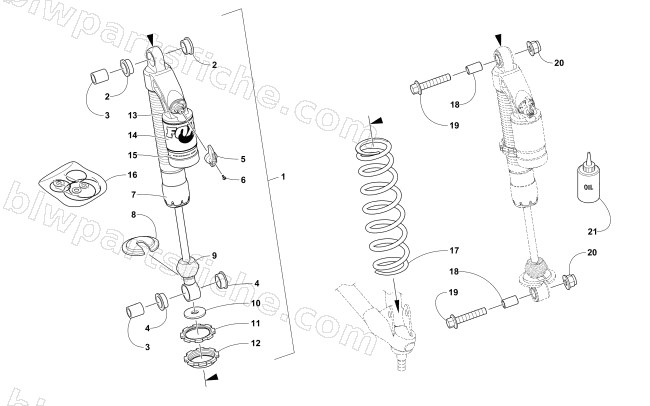

2018 Arctic Cat XF 9000 CROSS COUNTRY LTD 137 — FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY
2018 XF 9000 CROSS COUNTRY LTD 137
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3703-476 | SHOCK, SKI 1.5" W/REMOTE COILOVER W/QS3 | 1 | $823.95 | |
| 2 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 3 | 2604-223 | SLEEVE, .571 X .815 X .950TLG | 1 | $33.95 | |
| 4 | 3603-283 | BUSHING,EYELET-1.20" X 1.015" X .824 ID | 1 | $26.95 | |
| 6 | 3603-377 | SCREW,#4-40 X 1/4 SS | 1 | $12.35 | |
| 7 | 4604-016 | SPRING, GUIDE-1.82 OD X 1.50 TLG | 1 | $38.95 | |
| 8 | 0403-490 | RETAINER,SPRING-2.55 OD X .34 TLG | 1 | $37.95 | |
| 9 | 3603-024 | BUMPER,.498 SHAFT X 1.050 TLG | 1 | $16.49 | |
| 10 | 3603-028 | WASHER, .501 ID X 1.500 OD X 0.125 THK | 1 | $12.95 | |
| 11 | 3603-026 | RING,PRELOAD BACK UP-2.4ODX.240TLG | 1 | $16.49 | |
| 12 | 3603-027 | RING,PRELOAD-2.40 OD X .450 TLG | 1 | $17.87 | |
| 15 | 3603-365 | DECAL,BAND-PERFORMANCE SERIES | 1 | $17.87 | |
| 17 | 3703-496 | SPRING,COMP-120 LB X 10.50"-PTD WHT | 1 | $39.95 | |
| 18 | 3604-109 | SLEEVE,SHOCK EYELET-10mm ID | 1 | $4.40 | |
| 19 | 8408-050 | SCREW,CAP-HFH M10X1.25X50 CL8.8 Z&Y | 1 | $2.75 | |
| 20 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 21 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
