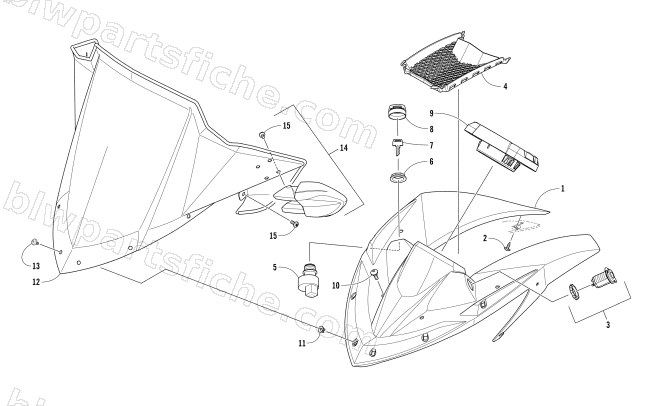

WINDSHIELD AND INSTRUMENTS ASSEMBLIES
2018 XF 9000 CROSSTOUR 146
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5706-694 | COWL,HEADLIGHT-Z3-ORN RTD(WINDSHLD) | 1 | $185.95 | |
| 3 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 4 | 6606-556 | VENT,POD | 1 | $33.95 | |
| 5 | 0609-911 | SWITCH,IGNITION-W/KEY | 1 | $66.95 | |
| 6 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 7 | 0430-042 | KEY,IGNITION SERIES-Y (LH BLANK) | 1 | $5.92 | |
| 7 | 0430-043 | KEY,IGNITION SERIES-Z (RH BLANK) | 1 | $11.95 | |
| 8 | 0430-054 | COVER,KEY | 1 | $15.11 | |
| 10 | 2623-042 | SCREW,SHOULDER-TSBH-M6-1.0 X 18 | 1 | $1.78 | |
| 11 | 1623-025 | GROMMET,SCREW-PLASTIC | 1 | $0.95 | |
| 12 | 7606-459 | WINDSHIELD,MID CRUISER-W/4 HOLES (G2) | 1 | $163.95 | |
| 14 | 6639-769 | KIT,MIRROR(SINGLE)'15 PTA-BLK | 1 | $46.95 | |
| 14 | 6639-770 | KIT,MIRROR(PAIR)'15 PTA-BLK | 1 | $92.95 | |
| 15 | 2623-017 | SCREW,SELF-TAP-TSTRH-M6X12-BOSCRW | 1 | $1.37 |
