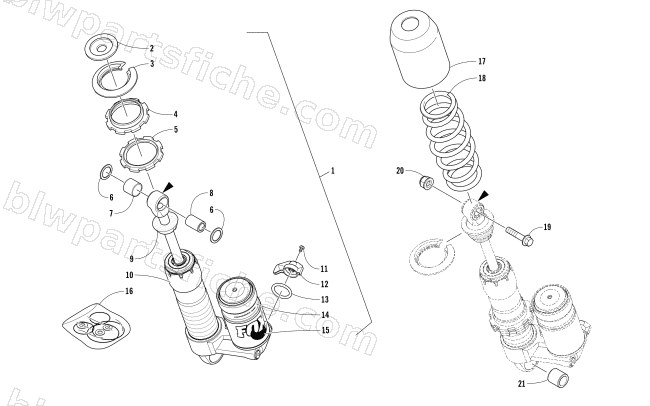

2018 Arctic Cat XF 9000 HIGH COUNTRY LTD 153 (1.75) — REAR SUSPENSION FRONT ARM SHOCK ABSORBER
2018 XF 9000 HIGH COUNTRY LTD 153 (1.75)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3704-212 | SHOCK,FRONT ARM 12.56" QS3 (M) | 1 | $533.95 | |
| 4 | 3603-027 | RING,PRELOAD-2.40 OD X .450 TLG | 1 | $17.87 | |
| 5 | 3603-026 | RING,PRELOAD BACK UP-2.4ODX.240TLG | 1 | $16.49 | |
| 7 | 3603-399 | BUSHING,EYELET-.403 ID X .621 OD X .740 | 1 | $35.95 | |
| 8 | 4604-223 | AXLE,EYELET-.315ID X .621 OD X .950 TL | 1 | $29.95 | |
| 9 | 3604-530 | BUMPER,SHOCK-.450 ID X .400 TLG | 1 | $49.95 | |
| 10 | 4604-016 | SPRING, GUIDE-1.82 OD X 1.50 TLG | 1 | $38.95 | |
| 11 | 3603-377 | SCREW,#4-40 X 1/4 SS | 1 | $12.35 | |
| 14 | 3603-365 | DECAL,BAND-PERFORMANCE SERIES | 1 | $17.87 | |
| 17 | 0604-790 | COVER,SUSPENSION SPRING (SHORT) | 1 | $24.77 | |
| 18 | 1704-236 | SPRING,COMP-FRT ARM -110#-PTD BLK | 1 | $49.95 | |
| 19 | 8413-845 | SCREW,CAP-HFH M8X1.25X45 CL10.9 SILV | 1 | $0.26 | |
| 20 | 8437-804 | NUT,HEX FLG-NYL LOCK M8X1.25 CL10 SILV | 1 | $0.81 | |
| 21 | 3604-906 | BEARING,SHOCK FRT ARM-25.45 X 22.4X18.54 | 1 | $5.09 |
