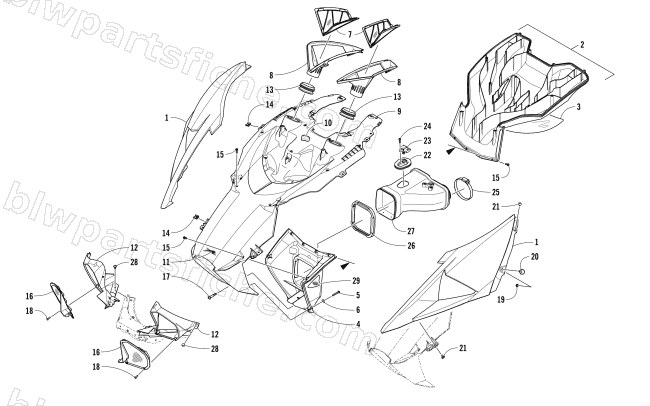

2018 Arctic Cat ZR 6000 CROSSTREK ES 137 — HOOD AND AIR INTAKE ASSEMBLY
2018 ZR 6000 CROSSTREK ES 137
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5718-640 | HOOD,MAIN-RH DYN GRY-W/DECAL (CROSSTREK) | 1 | $166.95 | |
| 1 | 5718-641 | HOOD,MAIN-LH DYN GRY-W/DECAL (CROSSTREK) | 1 | $166.95 | |
| 2 | 5718-329 | PLENUM,AIR INTAKE-LWR REAR-W/FOIL | 1 | $133.95 | |
| 5 | 1623-929 | SCREW,PLASTITE-TXSPNH 10-14X1 1/2 Z&B | 1 | $1.37 | |
| 6 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 9 | 5718-328 | HOOD,CENTER-2 STRK-W/FOAM | 1 | $191.95 | |
| 10 | 0617-648 | FOAM,PLENUM INTAKE 800 | 1 | $53.95 | |
| 11 | 4411-479 | EMBLEM,AIRCAT | 1 | $5.95 | |
| 13 | 6606-386 | SEAL,UPPER PLENUM | 1 | $3.57 | |
| 14 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 15 | 1623-933 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B | 1 | $0.26 | |
| 17 | 2623-058 | SCREW,SHOULDER-TSPNH-M6X1.0X42-RIE BLK | 1 | $20.63 | |
| 19 | 2623-004 | RETAINER,RING-SPLIT | 1 | $4.95 | |
| 20 | 2623-003 | STUD,1/4 TURN-16MM | 1 | $19.95 | |
| 22 | 2670-444 | BOOT,T-MAP SENSOR | 1 | $53.95 | |
| 23 | 0824-052 | SENSOR,T-MAP | 1 | $225.95 | |
| 24 | 2623-016 | SCREW,SELF TAP-TSPNH 10-16X7/8 TYPE A SS | 1 | $1.78 | |
| 25 | 0423-018 | CLAMP,HOSE-WORM (NORMA 60-80) | 1 | $6.47 | |
| 26 | 0617-624 | SEAL,AIR SILENCER | 1 | $9.59 | |
| 27 | 1770-056 | BOOT,EXTENSION-EFI ASSY | 1 | $101.95 | |
| 29 | 0621-989 | DECAL,REFLECTOR-AMBER | 1 | $15.11 |
