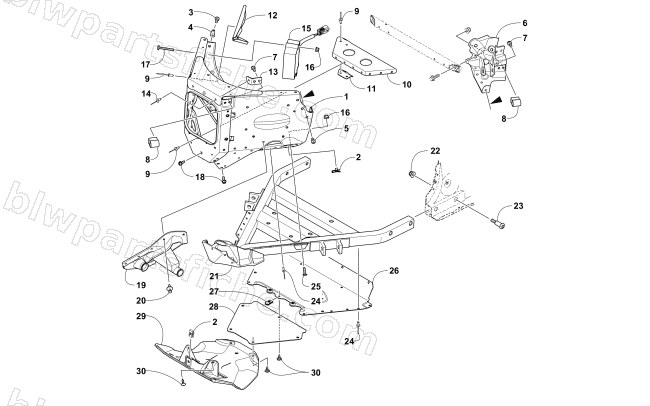

FRONT FRAME ASSEMBLY
2018 ZR 6000 ES 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2707-494 | PANEL,FRT-ASSY 10MM 4/6 RR-PTD BLK | 1 | $445.95 | |
| 2 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 3 | 1623-683 | SCREW,TAPTITE-TSPNH M6 X 1 X 20 Z&B | 1 | $1.23 | |
| 4 | 2612-707 | TAB,RESONATOR MTG | 1 | $3.02 | |
| 5 | 0423-538 | SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z&B | 1 | $0.68 | |
| 6 | 1707-776 | HOUSING,A-ARM/SHOCK MTG-RH-PTD BLK | 1 | $106.95 | |
| 6 | 1707-777 | HOUSING,A-ARM/SHOCK MTG-LH-PTD BLK | 1 | $101.95 | |
| 7 | 8413-617 | SCREW,CAP-HFH M6X1.0X16 CL10.9 W/2353 | 1 | $1.23 | |
| 8 | 1607-233 | BRKT,MTG-UPPER A-ARM-M6 X 1 THDS | 1 | $15.11 | |
| 9 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 10 | 1607-565 | BRKT,MTG-STEERING POST-LWR | 1 | $29.95 | |
| 11 | 1607-566 | BRKT,MTG-STEERING POST BRACE-LWR | 1 | $3.57 | |
| 12 | 0607-991 | BRKT,MTG-STEERING STOP | 1 | $16.49 | |
| 13 | 1607-561 | GUSSET,MTG BRKT-UPR A-ARM | 1 | $1.78 | |
| 14 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 15 | 0630-366 | REGULATOR/RECTIFER | 1 | $227.95 | |
| 16 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 17 | 8468-645 | SCREW,MACH-TSPNH M6X1.0X45 CL8.8 BLK | 1 | $1.23 | |
| 18 | 1623-959 | SCREW,SELF TAP 1/4-20X5/8 TYPE F BLK | 1 | $0.26 | |
| 19 | 1605-028 | BOOT,STEERING-RH | 1 | $33.95 | |
| 19 | 1605-029 | BOOT,STEERING-LH | 1 | $33.95 | |
| 20 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 21 | 3707-130 | FRAME,LOWER-2 STRK-BLK-W/BUSHINGS | 1 | $462.95 | |
| 22 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 23 | 1623-817 | SCREW,SHOULDER-HSTRH M8 X 1.25 X 44.16 | 1 | $1.92 | |
| 24 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 25 | 8468-620 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 BLK | 1 | $0.68 | |
| 27 | 1623-052 | NUT,U | 1 | $0.95 | |
| 28 | 1607-063 | PANEL,ACCESS | 1 | $12.35 |
