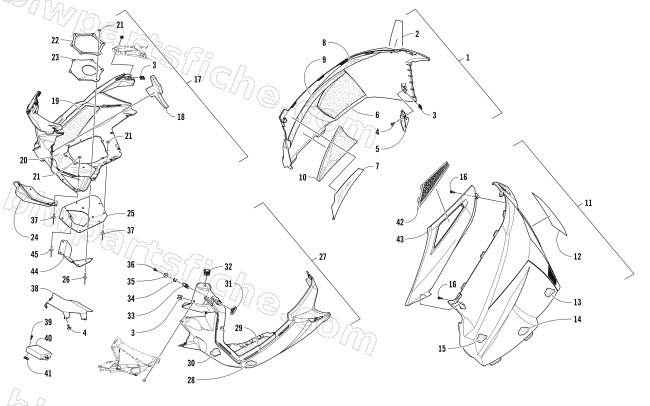

2018 Arctic Cat ZR 6000 LTD ES 129 — SKID PLATE AND SIDE PANEL ASSEMBLY
2018 ZR 6000 LTD ES 129
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5718-628 | PANEL,SIDE-RH BLK-W/DECAL (6000 LTD) | 1 | $298.95 | |
| 1 | 5718-306 | PANEL,SIDE-RH BLK-W/WARNING DECAL-2 STRK | 1 | $266.95 | |
| 3 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 11 | 5718-629 | PANEL,SIDE-LH BLK-W/DECAL (6000 LTD) | 1 | $298.95 | |
| 11 | 5718-031 | PANEL,SIDE-LH BLK-W/WARNING DECAL | 1 | $149.95 | |
| 20 | 3612-328 | FOIL,HEAT-SKID PLATE | 1 | $9.59 | |
| 21 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 22 | 3612-232 | PLATE,EXHAUST OUTLET | 1 | $13.73 | |
| 26 | 8061-712 | RIVET,BLIND-LF SS73 BLACK | 1 | $0.81 | |
| 32 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 36 | 1623-933 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B | 1 | $0.26 | |
| 37 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 38 | 6606-940 | SHIELD,HEAT-ECU | 1 | $26.95 | |
| 39 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 40 | 0730-276 | ECM,PROGRAMMED-9T/2.86P-6000 | 1 | $2,029.95 | |
| 41 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 43 | 5718-618 | PANEL,SIDE-UPR RH BLK-W/DECAL | 1 | $122.95 | |
| 43 | 5718-619 | PANEL,SIDE-UPR LH BLK-W/DECAL | 1 | $122.95 | |
| 44 | 2712-103 | DEFLECTOR,EXHAUST OUTLET-OUTER-PTD BLK | 1 | $41.95 | |
| 45 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 |
