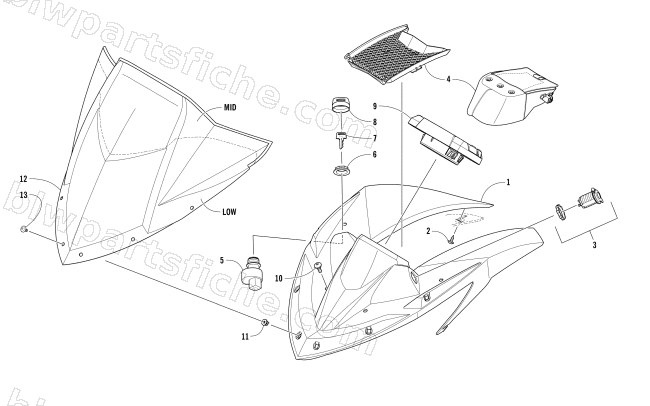

2018 Arctic Cat ZR 6000 LTD ES 129 — WINDSHIELD AND INSTRUMENTS ASSEMBLIES
2018 ZR 6000 LTD ES 129
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5718-613 | COWL,HEADLIGHT-BLK W/DECAL | 1 | $144.95 | |
| 3 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 4 | 7606-543 | BAG,GOGGLE G2 | 1 | $74.95 | |
| 5 | 0609-910 | SWITCH,OPEN IGNITION-2012 | 1 | $68.95 | |
| 6 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 7 | 0430-042 | KEY,IGNITION SERIES-Y (LH BLANK) | 1 | $5.92 | |
| 7 | 0430-043 | KEY,IGNITION SERIES-Z (RH BLANK) | 1 | $11.95 | |
| 8 | 0430-054 | COVER,KEY | 1 | $15.11 | |
| 9 | 0720-031 | R/B 0720-045 | 1 | $667.95 | |
| 10 | 2623-042 | SCREW,SHOULDER-TSBH-M6-1.0 X 18 | 1 | $1.78 | |
| 11 | 1623-025 | GROMMET,SCREW-PLASTIC | 1 | $0.95 | |
| 12 | 7606-546 | WINDSHIELD,MID-MED GRN (G2) | 1 | $133.95 |
