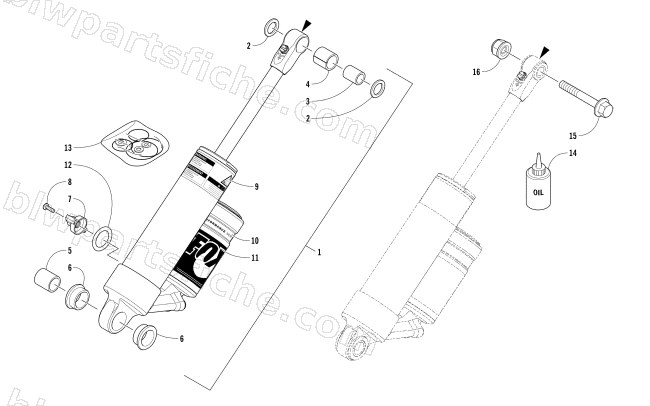

2018 Arctic Cat ZR 6000 RR ES 137 — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2018 ZR 6000 RR ES 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3704-253 | SHOCK,REAR-2.0-QS3-R-15.14"- KAS | 1 | $1,051.95 | |
| 4 | 3603-399 | BUSHING,EYELET-.403 ID X .621 OD X .740 | 1 | $35.95 | |
| 5 | 2604-223 | SLEEVE, .571 X .815 X .950TLG | 1 | $33.95 | |
| 6 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 8 | 3603-377 | SCREW,#4-40 X 1/4 SS | 1 | $12.35 | |
| 9 | 3603-418 | DECAL BAND [4.4 X 1.5] WARNING SYMBOLS | 1 | $12.35 | |
| 10 | 3603-365 | DECAL,BAND-PERFORMANCE SERIES | 1 | $17.87 | |
| 11 | 3603-437 | DECAL, RESERVOIR - FS KASHIMA | 1 | $19.25 | |
| 14 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 | |
| 15 | 8408-045 | SCREW,CAP-HFH M10X1.25X45 CL8.8 Z&Y | 1 | $4.68 |
