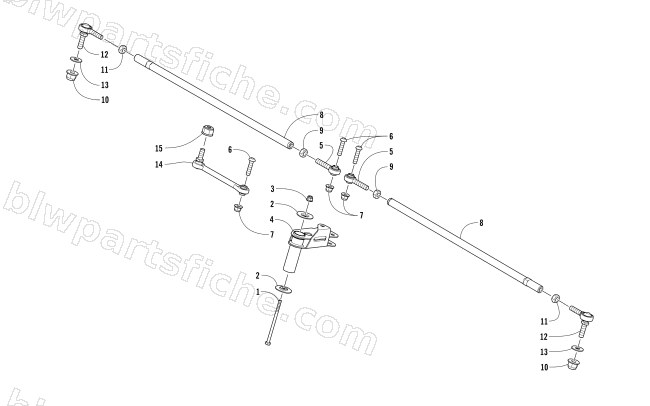

2018 Arctic Cat ZR 6000 SNO PRO ES 129 — TIE ROD ASSEMBLY
2018 ZR 6000 SNO PRO ES 129
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8402-600 | SCREW,CAP-HH M6X1X100 8.8 Z&Y | 1 | $1.50 | |
| 2 | 1623-807 | WASHER,STEPPED-BELLCRANK | 1 | $1.50 | |
| 3 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 4 | 1705-488 | BELLCRANK-PTD BLK | 1 | $43.95 | |
| 5 | 1605-032 | ROD END-RH M10X1.25 (8MM BORE) | 1 | $44.95 | |
| 6 | 2623-026 | SCREW,MACH-TSPH-M8X1.25X37 CL 12.9 MZ | 1 | $1.64 | |
| 7 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 8 | 0605-477 | TUBE,TIE ROD-SPINDLE-M10X1.25X465mm | 1 | $22.01 | |
| 9 | 8420-002 | NUT,HEX - M10 X 1.25 CL8 Z&Y | 1 | $0.68 | |
| 10 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 11 | 0423-013 | NUT,HEX M10-1.25(LH) Z&Y | 1 | $1.09 | |
| 12 | 1605-019 | ROD END-LH M10X1.25 THD W/STUD | 1 | $54.95 | |
| 13 | 1623-803 | WASHER,FLAT HARD-M10X20X2.30 Z&Y | 1 | $0.95 | |
| 14 | 1605-072 | TIE ROD,DRGLINK-112.6mm-FRGD | 1 | $56.95 | |
| 15 | 8422-002 | NUT,HEX-THK NYL M10X1.25 CL8 Z&Y | 1 | $0.95 |
