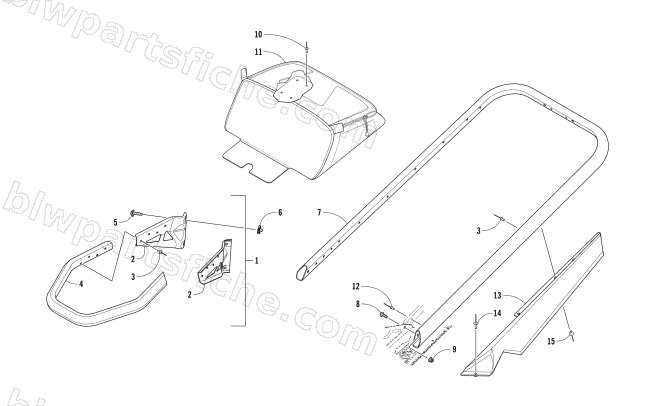

2018 Arctic Cat ZR 6000 SNO PRO ES 137 — BUMPERS AND STORAGE
2018 ZR 6000 SNO PRO ES 137
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 1707-576 | BRKT,MTG-FRT BUMPER-RH-PTD BLK | 1 | $17.87 | |
| 2 | 1707-577 | BRKT,MTG-FRT BUMPER-LH-PTD BLK | 1 | $17.87 | |
| 3 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 5 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 6 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 8 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 9 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 10 | 8061-628 | RIVET,BLIND-LF AA66 BLACK | 1 | $0.95 | |
| 12 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 13 | 6606-870 | FLARE,TUNNEL-RH BLK | 1 | $58.95 | |
| 13 | 6606-871 | FLARE,TUNNEL-LH BLK | 1 | $58.95 | |
| 14 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 15 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 |
