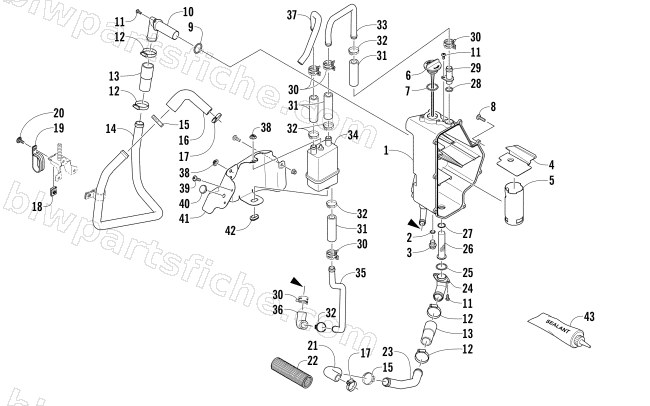

OIL TANK ASSEMBLY
2018 ZR 7000 LTD 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1770-120 | TANK,OIL-W/FITTING | 1 | $512.95 | |
| 2 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 3 | 2602-099 | PLUG,FILL-12 MM | 1 | $13.73 | |
| 4 | 2670-481 | BAFFLE,OIL TANK | 1 | $10.97 | |
| 5 | 2670-219 | TUBE,OIL TANK | 1 | $38.95 | |
| 6 | 2670-485 | CAP,OIL TANK- W/ O-Ring | 1 | $22.01 | |
| 7 | 2670-135 | O-RING,OIL CAP | 1 | $2.19 | |
| 8 | 1623-814 | SCREW,MAG FORM-TXPH-M6X2.0X24 | 1 | $1.09 | |
| 9 | 2670-406 | O-RING,OIL TANK-0.984 ID X 0.139 THK | 1 | $0.95 | |
| 10 | 2670-221 | NIPPLE,OIL TANK-OIL RETURN | 1 | $38.95 | |
| 11 | 1623-969 | SCREW,MAG FORM-TXPH-M6X2.0X12 Z&C | 1 | $1.64 | |
| 12 | 2623-088 | CLAMP,HOSE-23/35 | 1 | $2.88 | |
| 13 | 0610-940 | HOSE,22.22/25.4mm ID X 75mm LG-SAE J30 | 1 | $12.35 | |
| 14 | 2670-286 | TUBE,OIL RETURN-FORMED | 1 | $37.95 | |
| 15 | 1623-349 | CLAMP,H0SE-CRIMP-31.6 | 1 | $3.99 | |
| 16 | 0610-919 | HOSE,OIL-16 ID TO 22.22 ID ELBOW | 1 | $16.49 | |
| 17 | 1623-182 | CLAMP, INERCOOLER-SMALL | 1 | $4.40 | |
| 18 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 19 | 2623-015 | CLAMP,DOUBLE TUBE-.875 DIA | 1 | $3.16 | |
| 21 | 0610-929 | HOSE,OIL-16 ID TO 22.22 ID ELBOW | 1 | $12.35 | |
| 22 | 0610-790 | LOOM,COOLANT HOSE-5 FT | 1 | $132.95 | |
| 23 | 2670-285 | TUBE,OIL FEED-FORMED | 1 | $19.25 | |
| 24 | 2670-220 | NIPPLE,OIL TANK-OIL FEED | 1 | $37.95 | |
| 25 | 2670-290 | O-RING,OIL TANK(2-120) | 1 | $0.95 | |
| 26 | 2670-470 | SCREEN,OIL TANK | 1 | $17.87 | |
| 27 | 0673-459 | O-RING,3/4ID X 1/16 (-018) | 1 | $1.23 | |
| 28 | 0670-183 | O-RING, 5/8 X 13/16 OD | 1 | $0.26 | |
| 29 | 2670-620 | FITTING,OIL TANK-VENT | 1 | $37.95 | |
| 30 | 1623-287 | CLAMP,HOSE-SPRING (12W X 24) | 1 | $3.44 | |
| 31 | 0610-965 | HOSE,BREATHER-OIL TANK-60mm | 1 | $13.73 | |
| 32 | 1623-350 | CLAMP,H0SE-CRIMP-25.6 | 1 | $1.50 | |
| 33 | 2670-419 | TUBE,OIL SEPERATOR/OIL TANK | 1 | $27.95 | |
| 35 | 2670-375 | TUBE,OIL SEPERATOR/LWR OIL TANK | 1 | $24.77 | |
| 36 | 0610-954 | HOSE,OIL TANK-FORMED | 1 | $17.87 | |
| 37 | 2670-374 | TUBE,OIL SEPERATOR/AIR SILENCER | 1 | $20.63 | |
| 38 | 0423-357 | NUT, STAMPED-1/4" (SD 25001 SOH) | 1 | $0.95 | |
| 39 | 8470-510 | SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z&Y | 1 | $0.68 | |
| 40 | 0406-877 | BUMPER,SEAT | 1 | $3.57 | |
| 41 | 2670-381 | BRKT,MTG-OIL SEPARATOR | 1 | $56.95 | |
| 42 | 2623-012 | GROMMET, RUBBER-OVAL 5/8"W X 1 1/32"LG | 1 | $8.21 | |
| 43 | 1048-063 | LOCTITE,5699-GASKET MAKER(70ML) | 1 | $69.95 |
